Product Description

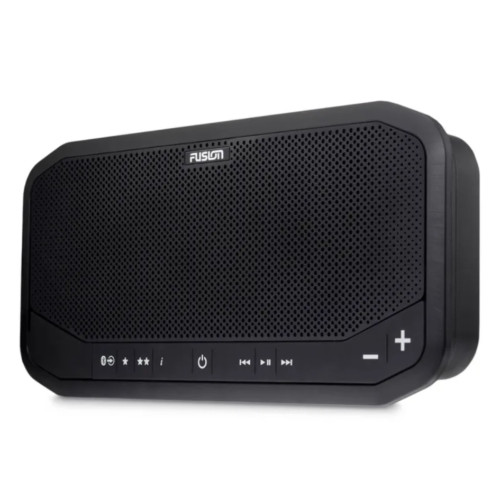

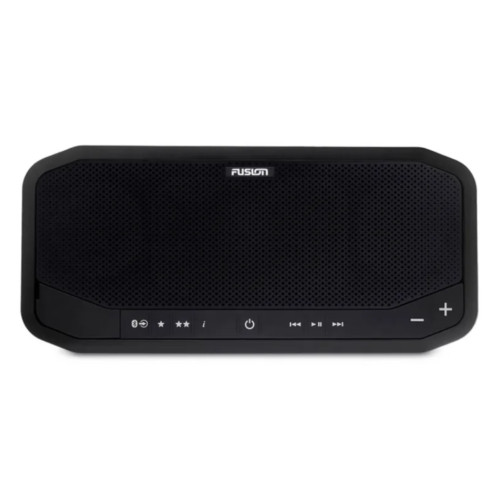

Brand new, genuine Garmin Fusion® Panel-Stereo Indoor. This is a factory original equipment item, not aftermarket.
The Panel-Stereo from Fusion allows you to enjoy quality audio on board your boat from the convenience of a single unit – designed to save time and money with a quick and simple installation.
| General | |
|---|---|
| DIMENSION | 13.54" x 6.1" x 1.97" (344 x 155 x 50 mm) |
| WEIGHT | 2.54 lbs (1.15 kg) |
| WATER RATING | IP65 (when properly installed) |
| OPERATING TEMPERATURE | 32° to 122° F (0° to 50° C) |
| CURRENT (MAX) | 10 A |
| Networking | |
|---|---|
| BLUETOOTH® WIRELESS RANGE | up to 30 ft (10 meters) |
| ANT® WIRELESS RANGE | Up to 10 ft (3 meters) |
| WIRELESS FREQUENCIES/PROTOCOLS | BLUETOOTH®: 2.4 GHz @ +9 dBm nominal ANT®: 2.4 GHz @ +9 dBm nominal |
| Audio | |
|---|---|
| AMPLIFIER | Class-D |
| Electrical Features | |
|---|---|
| POWER INPUT | 10.8 - 16 VDC |
| COMPASS-SAFE DISTANCE | 7.6" (229 mm) |
| Stereo Features | |
|---|---|
| PEAK POWER | 140 watts |
| RATED POWER OUTPUT (2 OHM) | 43 watts RMS x 2 @ 14.4 V input < 1% THD |
| BUILT-IN DIGITAL SIGNAL PROCESSING (DSP) | yes (preconfigured) |
| FUSION-LINK™ CONTROL | yes (smart device and Garmin watch) |
| BLUETOOTH® WIRELESS TECHNOLOGY | Yes |
| ANT® WIRELESS TECHNOLOGY | Yes |
| MULTI-LANGUAGE INTERFACE | Chinese (Mandarin), Dutch, English, French, German, Italian, Japanese, Spanish |
| SOFTWARE UPDATES | USB |
| WARRANTY | 1year |
| Sources | |
|---|---|
| SUPPORTED SOURCES | AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x2, AOA |
| Connections | |
|---|---|
| AUXILIARY INPUTS (RCA) | 2 |
| USB 2.0 PORTS | 1 |
| AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) | 1 |
| LINE OUT | 1 RCA Output (AUX) |
- Preconfigured Digital Signal Processing (DSP) technology for a superior listening experience. Hi-Fi audio reproduction through preconfigured DSP.
- Built-in Class-D amplifier delivers higher efficiency and greater output.
- Optimally tuned, sealed enclosure with two 3-inch speakers and a passive bass radiator.
- Multiple mounting options available, including flush, flat and surface mounting.
- Control your music from a compatible smart device or Garmin watch.
SKU# 010-02005-00
Items included in this kit:
- Fusion Panel-Stereo
- Stereo trim
- Six 6-gauge, self-tapping stainless steel screws
- Power wiring harness
- Documentation
Fits:
| Part Number: | Description: |
|---|---|
| 010-02158-90 | quatix® 6 |
| 010-02158-94 | quatix® 6 Titanium |
| 010-02157-30 | quatix® 6X Solar |
