Product Description

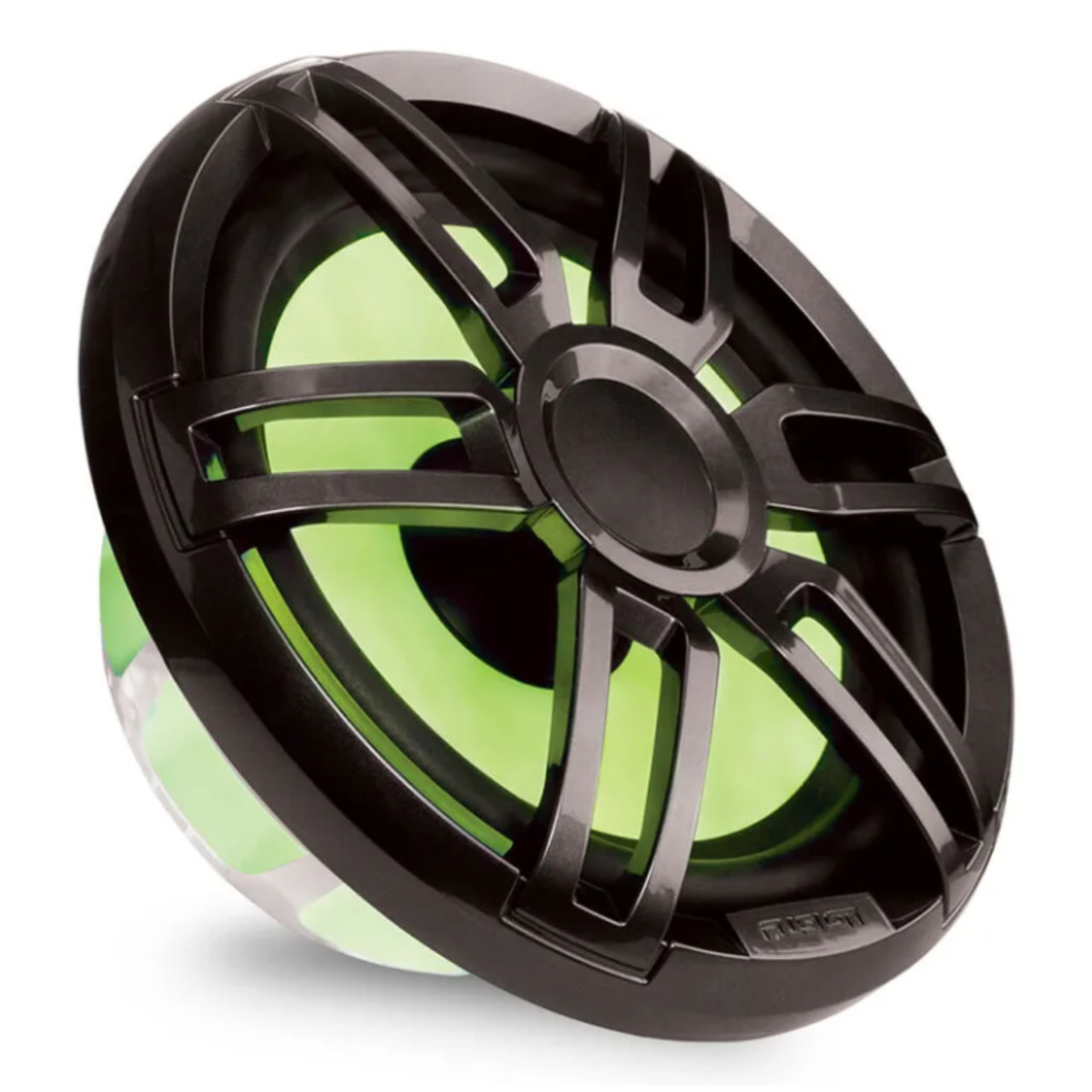

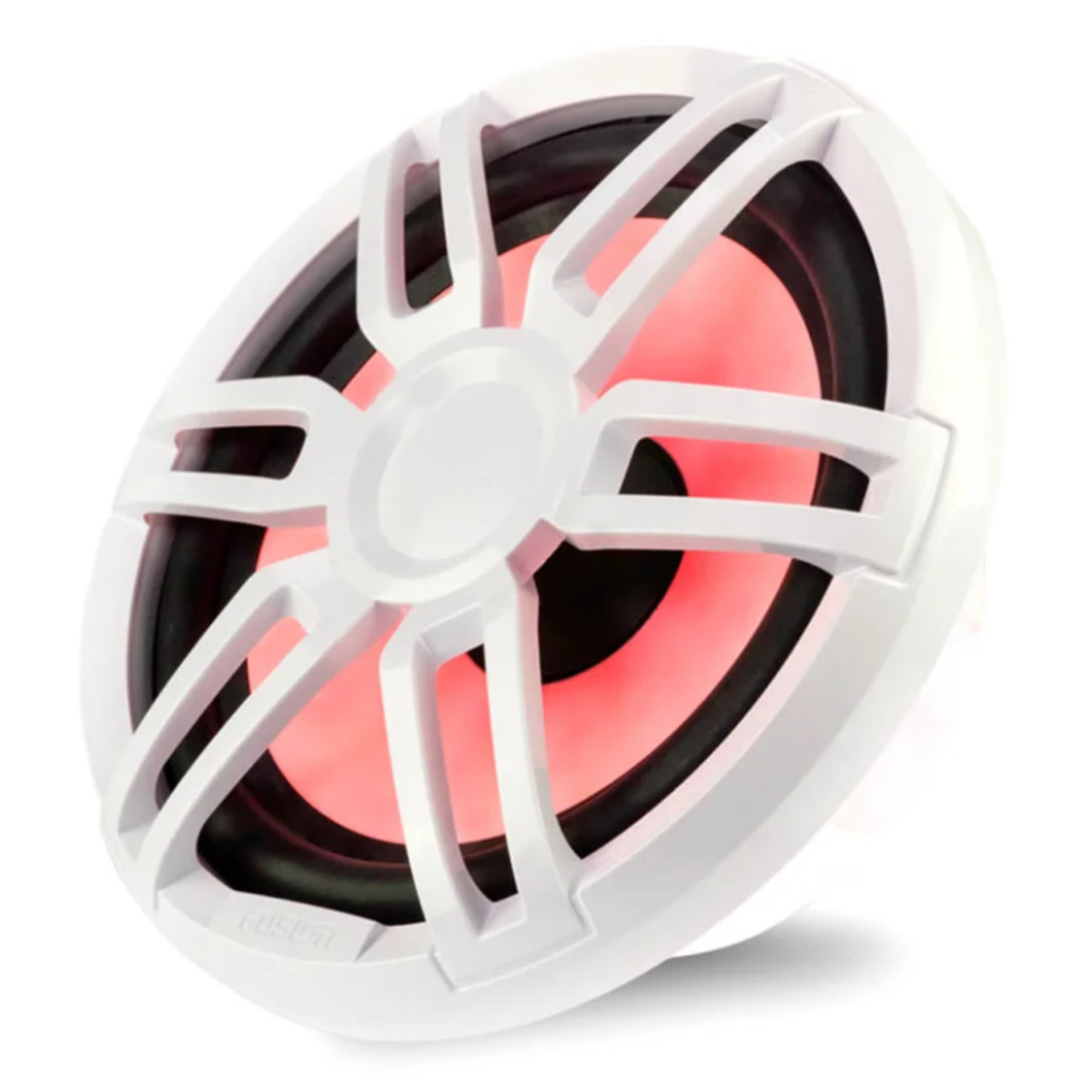

Brand new, genuine Garmin Fusion® XS Series Marine Subwoofers. This is a factory original equipment item, not aftermarket.
10" 600-Watt Sports Marine Subwoofer with RGB LED Lighting.
Enjoy high-performance low-end frequencies and multicolor RGB LED lighting with the XS Series subwoofers from Fusion — designed to add another dimension to your on-water audio entertainment experience at a midrange price point.
| General | |
|---|---|
| Physical dimensions (Diameter x Depth) | Classic: 10.79" x 5.59" (274 x 142 mm) Sports: 10.79" x 5.79" (274 x 147 mm) |
| Water and dust rating | IP65 |
| Speaker size | 10" |
| Peak power (Watts) | 600 W |
| RMS power (Watts) | 120 W |
| Sensitivity (1 W / 1 m) | 87 dB |
| Magnetic structure | 41 oz |
| Frequency response | 30 Hz - 2 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 40 - 300 W |
| LED lighting | Yes - RGB (XS-SL10SPGW only) |
| LED Supply Voltage | 10.8-16 VDC (XS-SL10SPGW only) |
| LED load current @ 14.4 VDC | 150 mA (XS-SL10SPGW only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 1.5" |
| Cone material | Polypropylene cone with rubber surround |
| Compass-safe distance | 146" (370 cm) |
| Warranty | 3 years |
| Mounting Dimensions | |
|---|---|
| Mounting diameter clearance | 8.78" (223 mm) |
| Mounting depth clearance | 4.45" (113 mm) |
| Optimum Enclosure Recommendations | |
|---|---|
| Sealed enclosure volume1 | 1.4 cubic ft (40 L) |
- Experience multicolor RGB LED lighting to brighten up your boating experience.
- Create a 2.1 audio zone to reduce system cost and simplify installation.
- Enjoy high-resolution bass reproduction from the quality polypropylene cone.
- With an increase in real power, the voice coil provides a high-quality sound experience.
- Engineered to last season after season, the speakers include a 3-year warranty.
SKU# 010-02198-20
Items included in this kit:
10" 600-Watt Classic Marine Subwoofer:
- XS-S10CWB subwoofer
- 6 Phillips stainless steel mounting screws (4.8 mm x 50 mm (10 gauge x 2”))
- Speaker grilles (1 classic white/1 classic black)
- Documentation
10" 600-Watt Sports Marine Subwoofer:
- XS-S10SPGW subwoofer
- 6 Phillips stainless steel mounting screws (4.8 mm x 50 mm (10 gauge x 2”))
- Speaker grilles (1 sports gray/1 sports white)
- Documentation
10" 600-Watt Sports Marine Subwoofer with RGB LED Lighting:
- XS-SL10SPGW subwoofer
- 6 Phillips stainless steel mounting screws (4.8 mm x 50 mm (10 gauge x 2”))
- Speaker grilles (1 sports gray/1 sports white)
- Documentation
Fits:
| Description: |
|---|
| Fusion® AM Series Marine Amplifiers |
| Fusion® Apollo™ MS-RA670 Marine Stereo |
| Fusion® Apollo™ MS-RA770 Marine Stereo |
| Fusion® Apollo™ MS-SRX400 Marine Zone Stereo |
| Fusion® Apollo™ MS-WB670 Marine Hideaway Stereo |
| Fusion® MS-BB100 Black Box |
| Fusion® MS-RA210 Marine Stereo |
| Fusion® MS-RA60 Marine Stereo |
| Fusion® RA70 Series Marine Stereos |
| Fusion® Signature Series Marine Amplifiers |
Product Videos
Custom Field
California Prop 65 Click here for information
Availability Description Item will be ordered direct from the manufacturer and generally ships within 5-10 business days. If ordered with any other item(s), fulfillment will not occur until received.
Ship Method **Special Order Item: Item(s) eligible for FREE Ground shipping, with order value over $99. Orders under $99 receive Economy shipping with a $5.99 fee. Faster shipping rates are not available.
Size 10"
Available In Stock Quantity 0 Stock On Hand
