Product Description
Brand new, genuine Mercury Marine / Mercruiser Power Trim & Tilt Kit. This is a factory original equipment item, not aftermarket.
These kits are designed to add power trim to motors not equipped with power trim at time of manufacture. Remote operation of any power trim requires the use of a power trim control panel or a trim type remote control if not already so equipped.

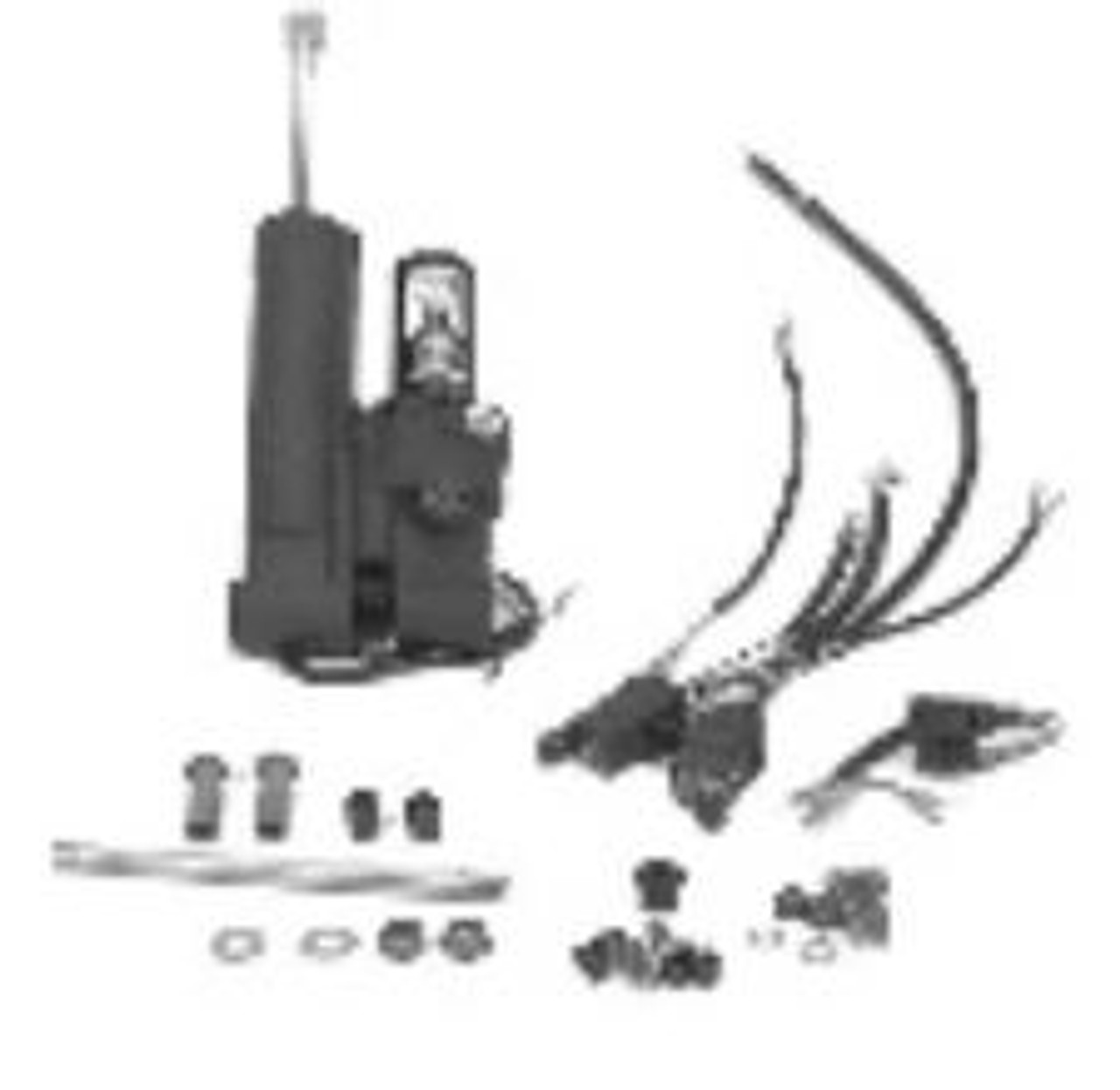

- Kit includes power trim, cowl mounted trim switch w/ wiring, and mounting hardware
- Fits Force 40/50 hp. outboards (USA 0E093700 and Newer).
SKU# 822344A12
Items included in this kit:
| Name | SKU# | Brand |
|---|---|---|
| (#10-16 x .500) Screw | 878608 | Mercury Marine |
| C WASHER | 69205 | Mercury Marine |
| Clip | 22740 | Mercury Marine |
| Grommet | 19565002 | Mercury Marine |
| Harness Assembly | 826802T29 | Mercury Marine |
| Pin-Trim | 822869001 | Mercury Marine |
| Power Trim Pump Assembly | 855654T08 | Mercury Marine |
| Power Trim Pump Assembly | 830150T6 | Mercury Marine |
| Screw | 8248324 | Mercury Marine |
| Screw | 82129125 | Mercury Marine |
| Trilobe Pin | 821539 | Mercury Marine |
| Trim Relay Bracket | 882831 | Mercury Marine |
| Trim Switch Assembly | 896620 | Mercury Marine |
| Trim Switch Retainer | 8124431 | Mercury Marine |
Supersession Chain:
| Name | SKU# | Superceding SKU# |
|---|---|---|
| TRIM KIT-FORCE | 822344A12 | Current |
| TRIM KIT-FORCE | 822344A7 | 822344A12 |
| TRIM KIT-FORCE | 822344A4 | 822344A7 |
Fits:
| Model | Country | Serial # Range |
|---|---|---|
| 40 hp. Force | USA | 0E093700 and Newer |
| 50 hp. Force | USA | 0E093700 and Newer |
