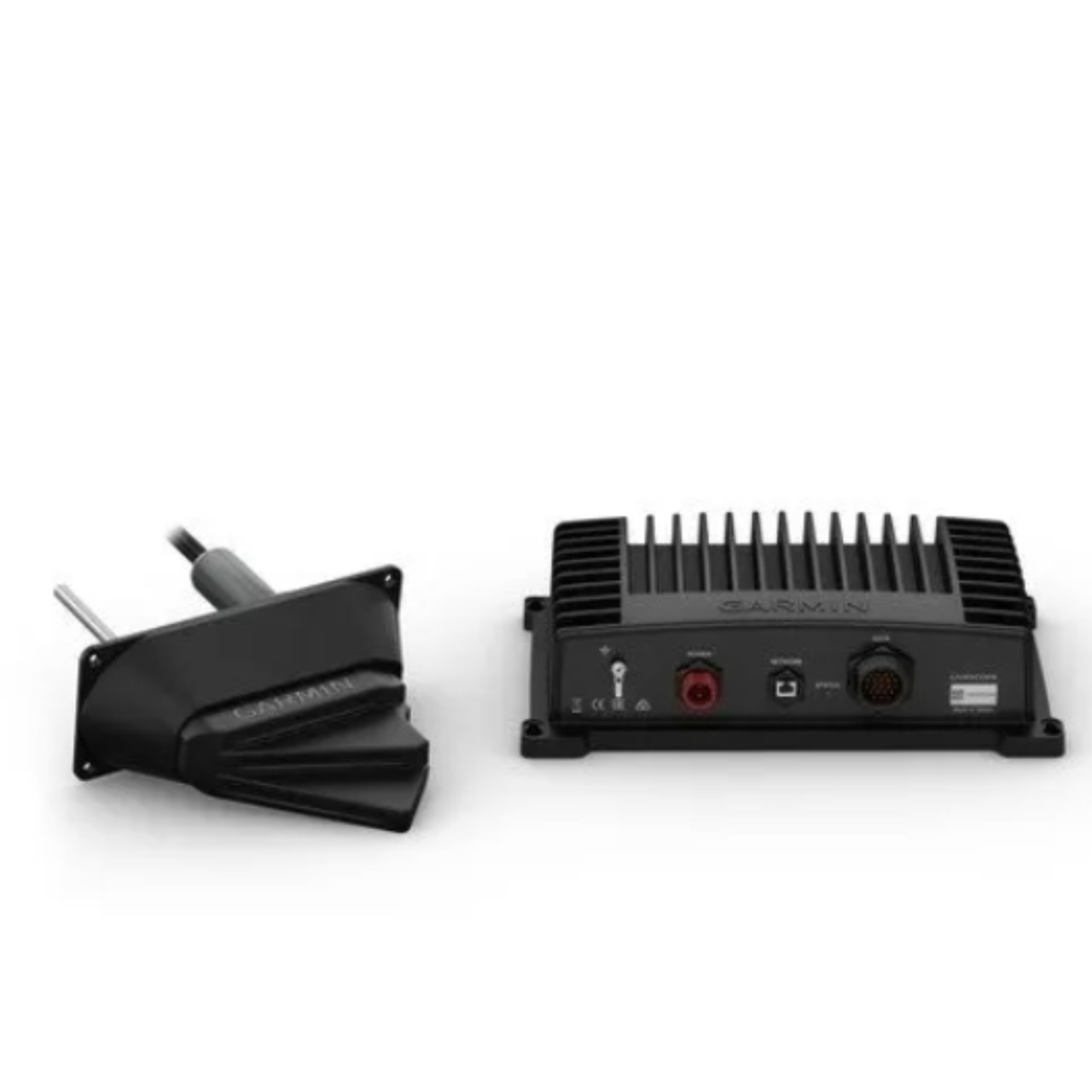

Brand new, genuine Garmin LiveScope™ System Thru-hull Mount. This is a factory original equipment item, not aftermarket.

SPECS

General
DIMENSION	GLS 10 sonar black box: 9.6" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm);
	LVS32-TH transducer without fairing block: 9.6" x 1.8" x 5.4" (24.4 x 4.6 x 13.7 cm)
	LVS32-TH transducer with fairing block: 9.6" x 3.4" x 8.1" (24.4 x 8.6 x 20.6 cm)
WEIGHT	GLS 10 sonar black box: 4.3 lbs (2.0 kg);
	LVS32-TH transducer without fairing block: 4.4 lbs (2.0 kg)
	LVS32-TH transducer with fairing block: 5.0 lbs (2.3 kg)
WATERPROOF	IPX7
TEMPERATURE RANGE	GLS 10 Black Box: Operating: -15 C to 70 C
	Panoptix LiveScope LVS12 Transducer: Operating: 0 C to 40 C

Electrical Features
POWER INPUT	10-32 V
POWER USAGE	21 W typical, 58 W max
TRANSMIT POWER	500 W
FUSE	7.5 A

Sonar Features & Specifications
FREQUENCY	530 - 1,100 kHz
MAXIMUM DEPTH	Forward: 200' (61.0 m)

Connections
GARMIN MARINE NETWORK PORTS	1 (small connector)

Beamwidth: 20° x 135°
Transducer cable length: 20 ft.
Transducer number of pins: 21

Sold Each

SKU# 010-02233-00

Items included in this kit:

LiveScope GLS 10 sonar black box
Panoptix LVS32 transducer
Thru-hull mount hardware
Power cable
2 meter Garmin marine network cable, small connector
Network adapter cable
Mounting hardware
Documentation

Fits:

Accessories

Product
Threaded Power Cable Threaded Power Cable
Right-angle Power Cable (6.5 ft)Right-angle Power Cable (6.5 ft)
Garmin Marine Network Cables (Small Connectors), 6ft (Straight)Garmin Marine Network Cables (Small Connectors), 6ft (Straight)
Garmin Marine Network Cables (Small Connectors), 20 ft (Straight)Garmin Marine Network Cables (Small Connectors), 20 ft (Straight)
Garmin Marine Network Cables (Small Connectors), 40 ft (Straight)Garmin Marine Network Cables (Small Connectors), 40 ft (Straight)
Garmin Marine Network Cables (Small Connectors), 50 ft (Right Angle)Garmin Marine Network Cables (Small Connectors), 50 ft (Right Angle)
Cable Coupler (Garmin Marine Network Cables, Small Connector)Cable Coupler (Garmin Marine Network Cables, Small Connector)
Garmin Marine Network Adapter Cable, Small (Male) to LargeGarmin Marine Network Adapter Cable, Small (Male) to Large
Panoptix LiveScope™ Transducer Extension Cable (21-pin)Panoptix LiveScope™ Transducer Extension Cable (21-pin)
Panoptix™ Ice Fishing Pole MountPanoptix™ Ice Fishing Pole Mount
Heavy Duty Transom Mount with Spray Shield (4/8/12-pin Transducers)Heavy Duty Transom Mount with Spray Shield (4/8/12-pin Transducers)
Port & Starboard StickersPort & Starboard Stickers
Thru-hull Stem ExtenderThru-hull Stem Extender
Fairing Block (Panoptix LiveScope™ LVS32-TH)Fairing Block (Panoptix LiveScope™ LVS32-TH)
Panoptix™ LVS32-TH TransducerPanoptix™ LVS32-TH Transducer
