Product Description
Brand new, genuine Garmin Fusion® Signature Series 3 Marine Subwoofers. This is a factory original equipment item, not aftermarket.

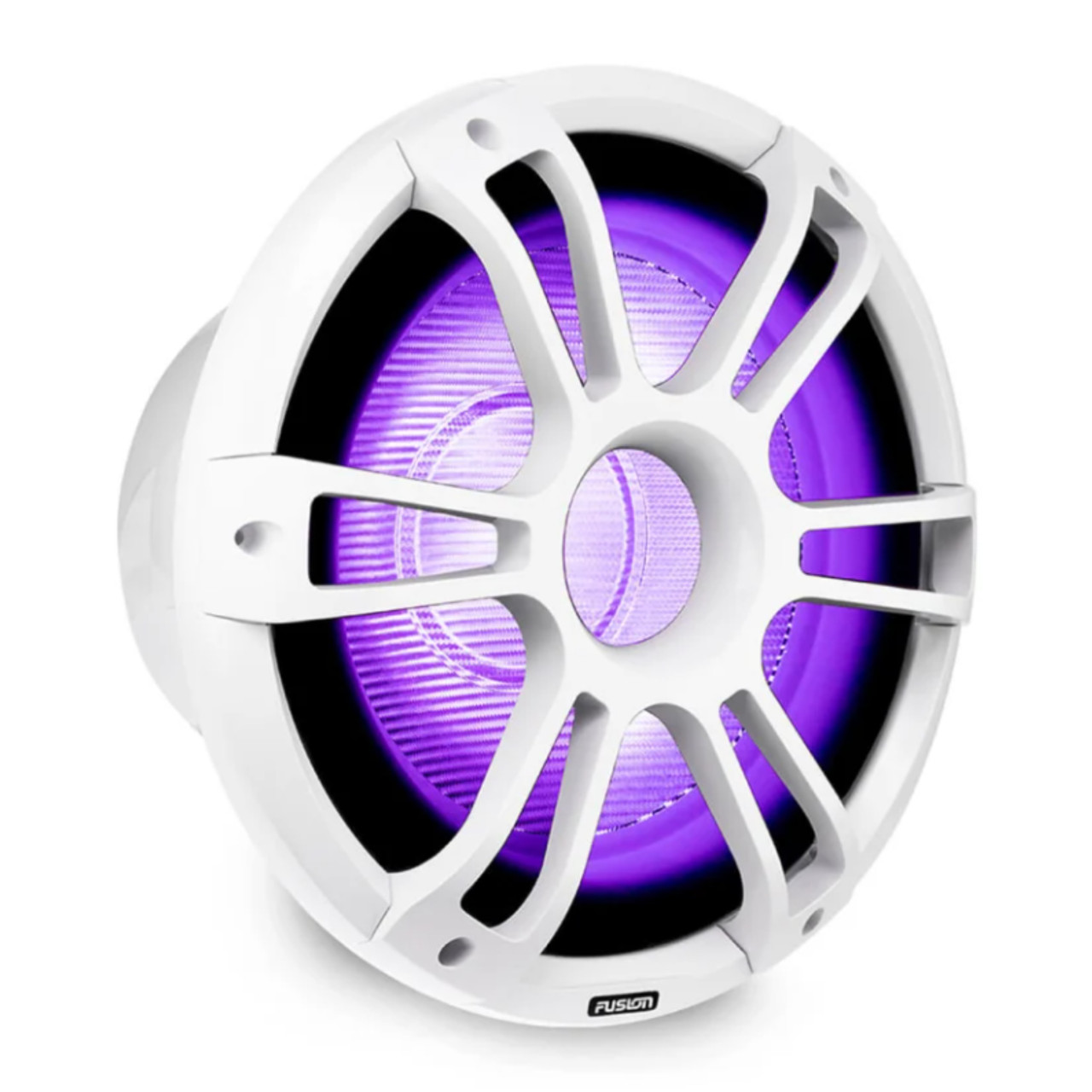

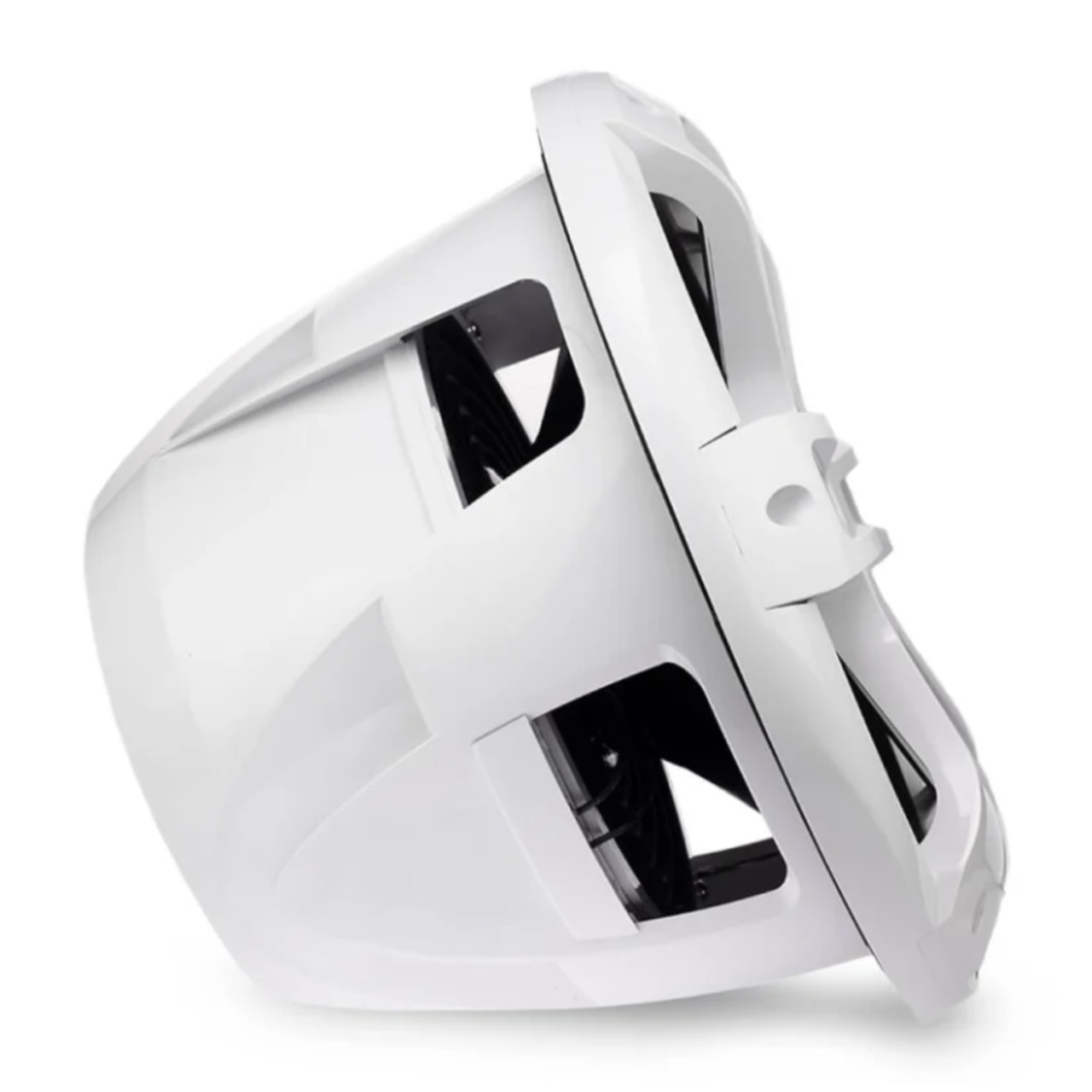

12" 1,400 Watt Sports White Marine Subwoofer with CRGBW.
Exceptional mechanical design and brilliant acoustic engineering have created the Signature Series 3 marine subwoofers, which deliver premium low frequencies for a truly memorable audio entertainment experience.
| General | |
|---|---|
| PHYSICAL DIMENSIONS (DIAMETER X DEPTH) | 12" Sports: 14.02" x 10" (356 x 254 mm) 10" Classic: 10.83" x 6.38" (275 x 162 mm) 10" Sports: 10.83" x 6.77" (275 x 172 mm) |
| WATER AND DUST RATING | IP65 |
| SPEAKER SIZE | 1,400 Watt Sports Chrome/White: 12" 600 Watt Classic and Sports Chrome/White: 10" |
| PEAK POWER (WATTS) | 12": 1,400 W 10": 600 W |
| RMS POWER (WATTS) | 12": 700 W 10": 300 W |
| SENSITIVITY (1 W / 1 M) | 86 dB |
| MAGNETIC STRUCTURE | 12": 113 oz 10": 68 oz |
| FREQUENCY RESPONSE | 12": 20 Hz - 2 kHz 10": 30 Hz - 2 kHz |
| NOMINAL IMPEDANCE | 4 ohms |
| RECOMMENDED AMPLIFIER POWER (RMS) | 12": 200 - 1000 W 10": 50 - 600 W |
| LED LIGHTING | Yes - CRGBW (sports-style only) |
| LED SUPPLY VOLTAGE | 10.8-16 VDC (sports-style only) |
| LED LOAD CURRENT @ 14.4 VDC | 300 mA (sports-style only) |
| OPERATING TEMPERATURE RANGE | 32° to 122° F (0° to 50° C) |
| VOICE COIL DIAMETER | 12": 4" 10": 2" |
| CONE MATERIAL | Polypropylene cone with rubber surround |
| COMPASS-SAFE DISTANCE | 12": 181" (460 cm) 10": 205" (520 cm) |
| WARRANTY | 3 years |
| Mounting Dimensions | |
|---|---|
| MOUNTING DIAMETER CLEARANCE | 12": 12.05" (306 mm) 10": 8.78" (223 mm) |
| MOUNTING DEPTH CLEARANCE | 12": 8.15" (207 mm) 10": 5.24" (133 mm) |
| Optimum Enclosure Recommendations | |
|---|---|
| SEALED ENCLOSURE VOLUME1 | 12": 2.12 cubic ft (60 L) 10": 0.6 cubic ft (17.2 L) |
| PORTED (VENTED) ENCLOSURE VOLUME2 | 12": 8.83 cubic ft (250 L) 10": 1.6 cubic ft (45 L) |
| PORT DIAMETER | 12": 4" (101.6 mm) 10": 4.1" (104 mm) |
| PORT LENGTH | 12": 5" (127 mm) 10": 10.43" (265 mm) |
- Experience industry-first marine subwoofers with CRGBW LED lighting. Enjoy high-resolution bass reproduction from the quality polypropylene cone.
- The 12” subwoofers pack a thunderous 1,400 watts of peak power, while the 10” subwoofers have an enhanced 600-watt peak power.
- With an increase in real power, the voice coil provides a sound exclusive to the Signature Series 3.
- The subwoofers are available in 10” and 12” designs with classic and sports style grilles.
- Engineered to last season after season, the subwoofers include a 3-year warranty.
SKU# 010-02436-10
Items included in this kit:
- One subwoofer (based on what you select)
- Documentation
Fits:
| Description: |
|---|
| Fusion® Apollo™ MS-RA670 Marine Stereo |
| Fusion® Apollo™ MS-RA770 Marine Stereo |
| Fusion® Apollo™ MS-SRX400 Marine Zone Stereo |
| Fusion® Apollo™ MS-WB670 Marine Hideaway Stereo |
| Fusion® MS-BB100 Black Box |
| Fusion® MS-RA210 Marine Stereo |
| Fusion® MS-RA60 Marine Stereo |
| Fusion® RA70 Series Marine Stereos |
| Fusion® Signature Series Marine Amplifiers |
Product Videos
Custom Field
California Prop 65 Click here for information
Availability Description Item will be ordered direct from the manufacturer and generally ships within 5-10 business days. If ordered with any other item(s), fulfillment will not occur until received.
Ship Method **Special Order Item: Item(s) eligible for FREE shipping, with order value over $99. Orders under $99 incur a $7.99 shipping fee. Faster shipping rates are not available.
Color White w/ RGB
Size 12"
Available In Stock Quantity 0 Stock On Hand
