Garmin OEM Fusion® Stereo and Speaker Kits, 010-02405-50

Garmin

$316.79

SKU:: 010-02405-50
UPC:: 753759294106
Condition:: New
California Prop 65:: Click here for information
Return Policy:: View Return Policy
Ship Policy:: View Shipping Policy

Overview

Product Description

Brand new, genuine Garmin Fusion® Stereo and Speaker Kits. This is a factory original equipment item, not aftermarket.

MS-RA60 and EL Classic Speaker Kit.

Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA60 marine stereo and EL Series speaker kit put the perfect soundtrack at your fingertips.

Stereo Specifications
Physical dimensions (HxWxD)	MS-RA60: 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm)
Weight	MS-RA60: 11.1 oz (316 g)
Water rating	IPX6 and IPX7 (front panel only, when properly installed)
Power input	10.8-16 VDC
Operating temperature range	32° to 122° F (0° to 50° C)
Current (max.)	15 A
BLUETOOTH® wireless range	Up to 30 ft (10 meters)
ANT wireless range	Up to 10 ft (3 meters)
Wireless frequencies/protocols	BLUETOOTH 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance	5.9" (150 mm)
Display	MS-RA60: 2.3" perimeter bonded monochrome dot matrix LCD
Built-in amplifier	Class-D (minimum 4 ohm impedance)
Peak power	MS-RA60: 180 W
Rated power output (4 ohm)	MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control	MS-RA60: yes (with smartphone and Garmin watch)
Multi-Zone™ technology	2 zones
BLUETOOTH wireless technology	yes
ANT wireless technology	yes
DAB+ ready	MS-RA60: yes (DAB tuner built in)
Multi-language interface	MS-RA60: Dutch, English, French, German, Italian, Spanish
Software updates	MS-RA60: Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app
Warranty	1 year
Sources	MS-RA60: AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only)
Auxiliary input	One RCA input (AUX)
AM/FM radio	One Motorola antenna connector port
Speaker	MS-RA60: 4 speaker connections (2 zone amplified)
RCA pre-out (left, right and subwoofer)	MS-RA60: 1 zone (requires external amplification)
Line out	MS-RA60: Zone 1 (L + R, requires external amplification)
Subwoofer out	MS-RA60: Zone 1 (requires external amplification)

Speaker Specifications
Physical dimensions (Diameter x Depth)	EL Classic Speaker: 6.93" x 2.26" (176 x 57.5 mm) EL Sports Speaker: 6.93" x 2.32" (176 x 59 mm)
Water rating	IP65
Configuration	EL Speaker: Full range
Speaker size	6.5"
Peak power (watts)	EL Speaker: 80 W
RMS Power (watts)	EL Speaker: 20 W
Sensitivity (1 watt/1 meter)	EL Speaker: 88 dB
Frequency response	EL Speaker: 45 Hz-16 kHz
Nominal impedance	4 ohm
Recommended amplifier power (RMS)	EL Speaker: 20-40 W/Ch
Operating temperature range	32° to 122° F (0° to 50° C)
Voice coil diameter	EL Speaker: 0.79"
Cone material	Polypropylene cone with cloth surround
Compass-safe distance	EL Speaker: 100" (254 cm)
Warranty	EL Speaker: 1 year
Mounting diameter clearance	EL Speaker: 5.12" (130 mm)
Mounting depth clearance	EL Speaker: 1.69" (43 mm)

Enjoy your music ASAP. Your marine stereo and both speakers come ready to install. Easily control music from your compatible smart device or Garmin watch.
Built-in Class D amplifier brings aboard higher efficiency and greater output.
Multi-Zone™ Technology makes you the captain of two separate audio zones.
Conveniently update software via BLUETOOTH® technology from the Fusion-Link™ app on your compatible smart device.
Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.

SKU# 010-02405-50

Items included in this kit:

MS-RA60 Stereo and EL Sports Speaker Kit:

MS-RA60 marine stereo
One pair of EL Series sports gray marine speakers

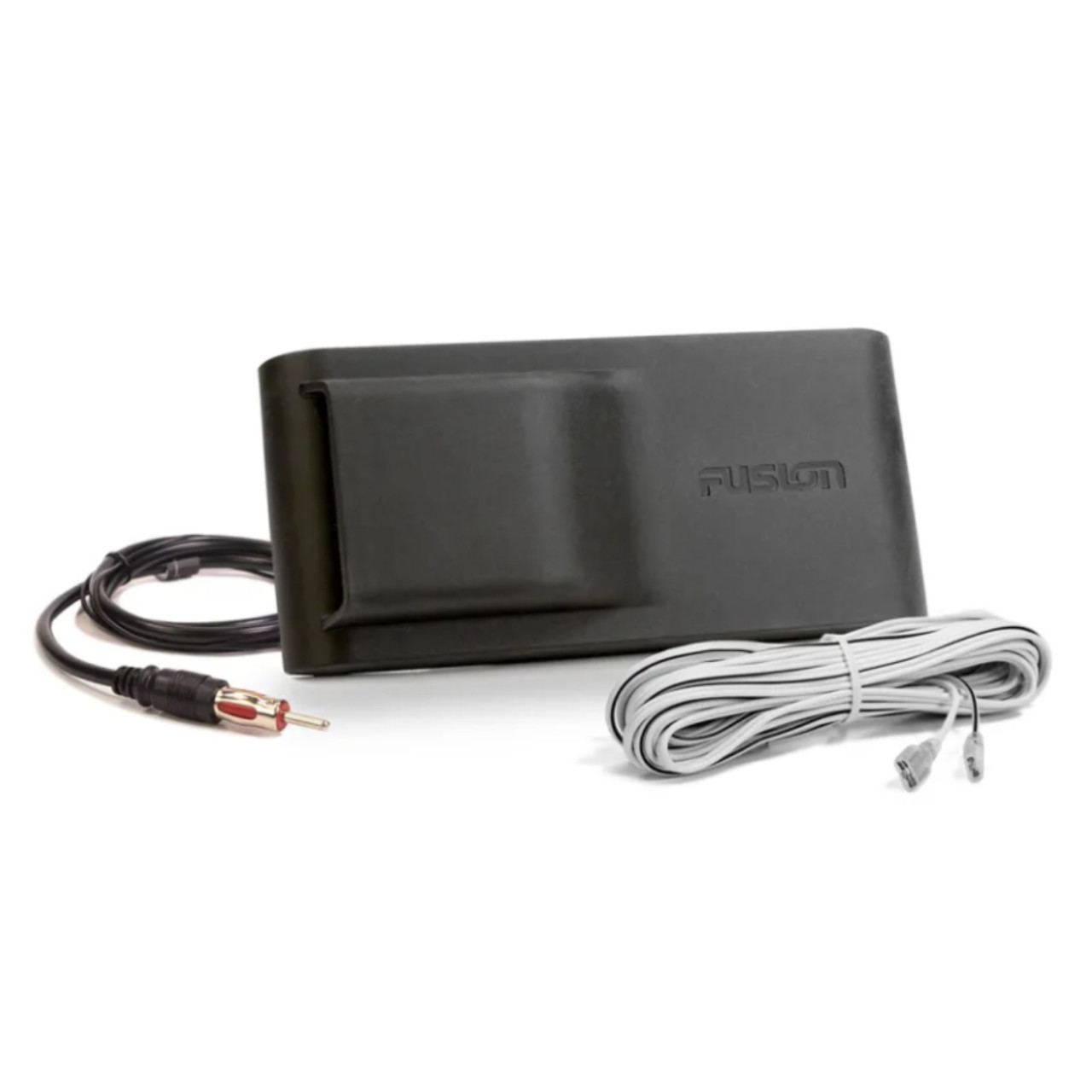

AM/FM stealth antenna
Two 19 ft (6 meter) speaker wires
Dust cover
Wiring harnesses and mounting accessories
Mounting gasket
Four 6-gauge, self-tapping screws
Two screw covers
Power and speaker wiring harness
Auxiliary-in, line-out, and subwoofer-out wiring harnesses
12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))

MS-RA60 Stereo and EL Classic Speaker Kit:

MS-RA60 marine stereo
One pair of EL Series classic white marine speakers
AM/FM stealth antenna
Two 19 ft (6 meter) speaker wires
Dust cover
Wiring harnesses and mounting accessories
Mounting gasket
Four 6-gauge, self-tapping screws
Two screw covers
Power and speaker wiring harness
Auxiliary-in, line-out, and subwoofer-out wiring harnesses
12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))x 25.4 mm (8 gauge x 1”))

Fits:

Description:
Fusion® AM Series Marine Amplifiers
Fusion® Signature Series Marine Amplifiers
Fusion® XS Series Marine Subwoofers
quatix® 6
quatix® 6 Titanium
quatix® 6X Solar
