Product Description

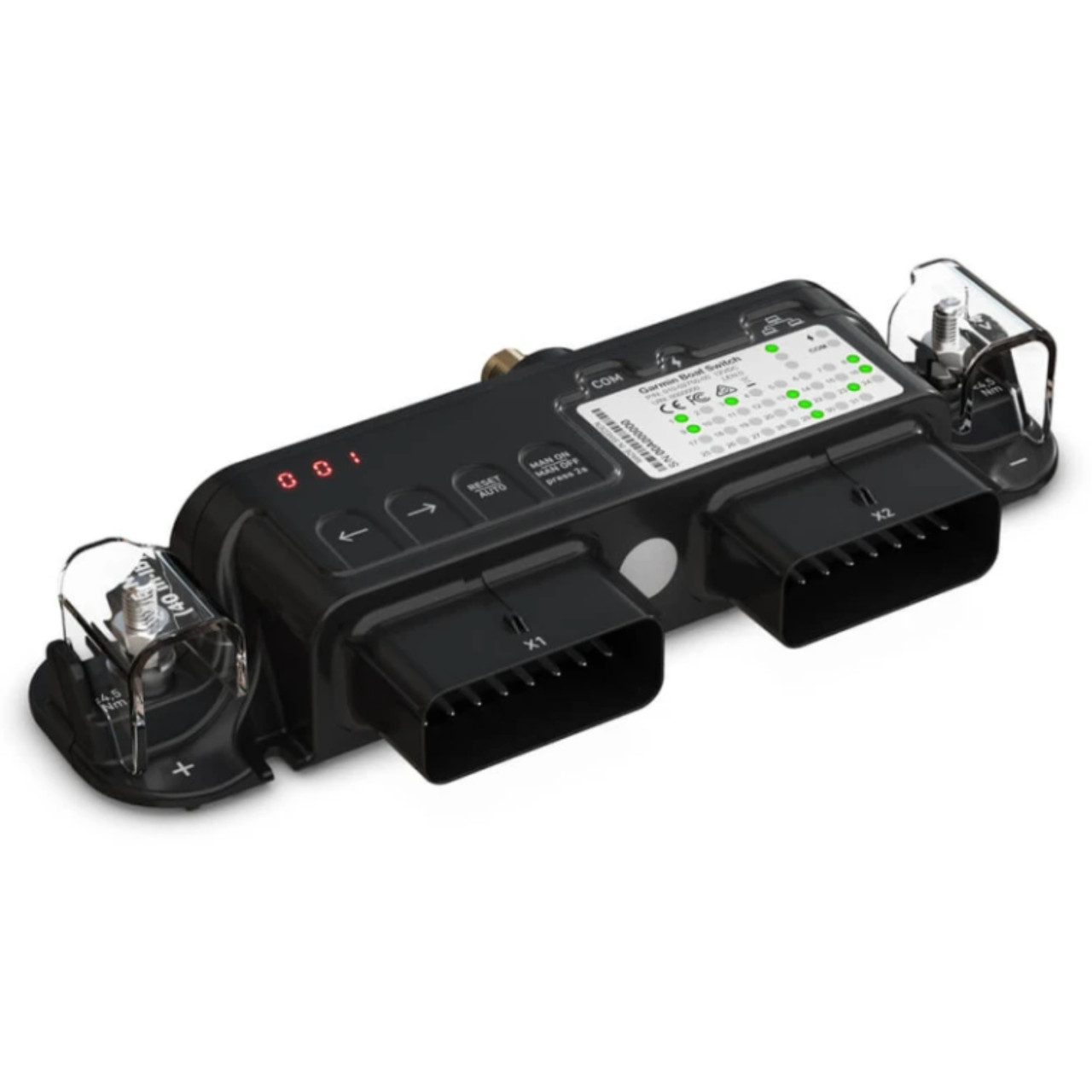

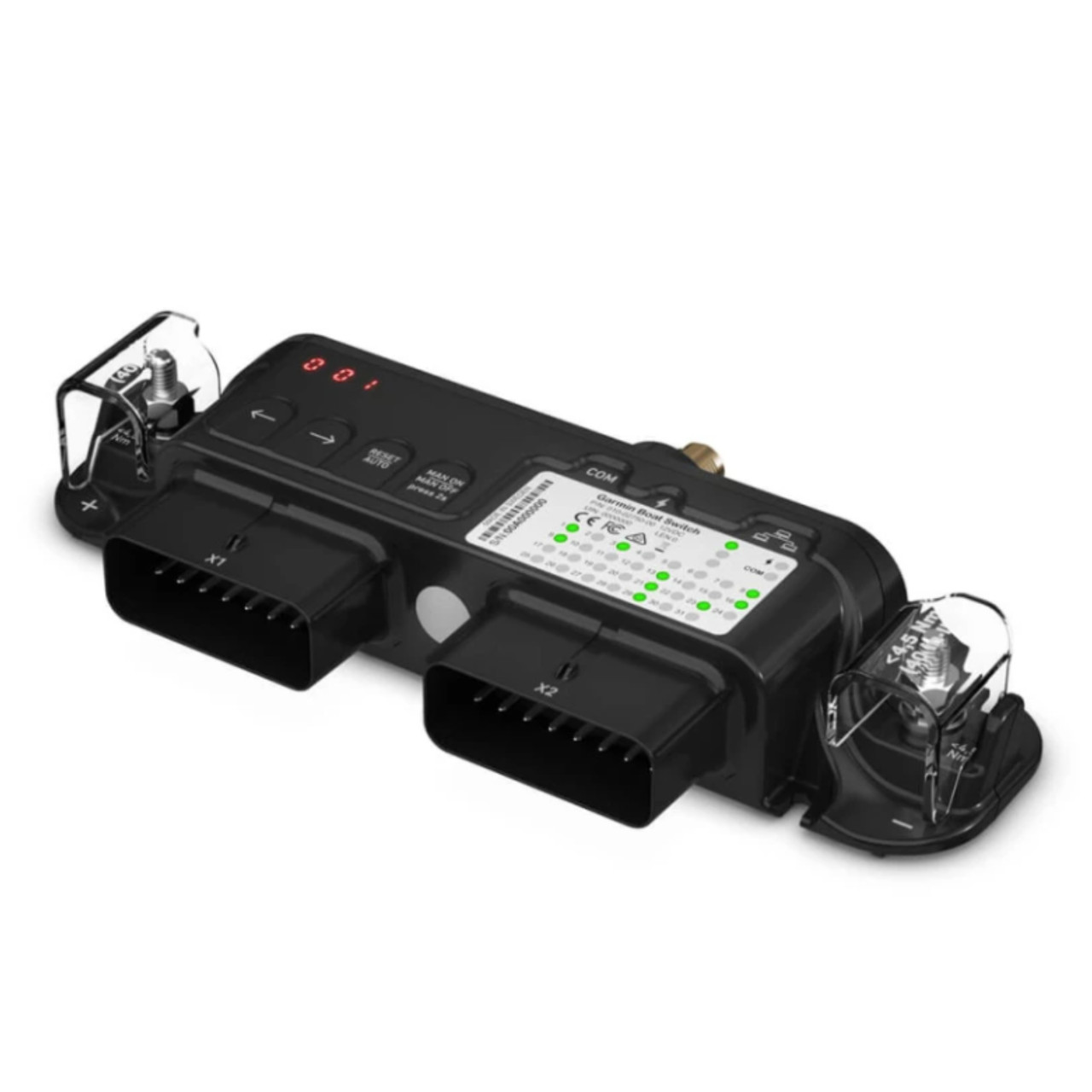

Brand new, genuine Garmin Garmin Boat Switch. This is a factory original equipment item, not aftermarket.
SPECS
| General | |
|---|---|
| Dimensions(WxHxD) (unit only) | 9.1" x 4.2" x 1.5" (230 x 106 x 38 mm) |
| Weight (unit only) | 14.1 oz (400 g) |
| Ambient temperature | -20° C to +55° C |
| Enclosure water rating | IP65 |
| Communication | CAN-bus NMEA 2000® network, LEN-0 |
| Output | |
|---|---|
| High side | 13 ch 10A, 7 ch 5A |
| Analog Input | |
|---|---|
| Volt | 3 @ 0-16 V +/-1% |
| Resistance | 2 @ 0-1500 ohm +/- 5% |
| Power Supply | |
|---|---|
| Maximum current | 50A |
| Power off current consumption | 60mA |
| Supply voltage (12V) | 9-16VDC |
| Connector | |
|---|---|
| NMEA 2000® | Micro 5-pin M12 male |
| Channels | Molex MX150 L 16 circuits |
| Power terminal | M6 bolt |
- Sold Each
SKU# 010-02735-00
Items included in this kit:
- Garmin Boat Switch
- Garmin Boat Switch Harness X1
- Garmin Boat Switch Harness X2
- Installation instructions
Fits:
Compatible Devices
| Product |
|---|
| ECHOMAP™ UHD 72cv |
| ECHOMAP™ UHD 72sv |
| ECHOMAP™ UHD 92sv |
| ECHOMAP™ UHD2 6" sv Chartplotters |
| ECHOMAP™ UHD2 7" sv Chartplotters |
| ECHOMAP™ UHD2 9" sv Chartplotters |
| ECHOMAP™ Ultra 102sv |
| ECHOMAP™ Ultra 106sv |
| ECHOMAP™ Ultra 122sv |
| ECHOMAP™ Ultra 126sv |
| GPSMAP® 1022 |
| GPSMAP® 1022xsv |
| GPSMAP® 1042xsv |
| GPSMAP® 1222 |
| GPSMAP® 1222 Plus |
| GPSMAP® 1222 Touch |
| GPSMAP® 1222xsv |
| GPSMAP® 1222xsv Plus |
| GPSMAP® 1222xsv Plus Bundle |
| GPSMAP® 1222xsv Touch |
| GPSMAP® 1223 |
| GPSMAP® 1223xsv |
| GPSMAP® 1242 Plus |
| GPSMAP® 1242xsv |
| GPSMAP® 1242xsv Plus |
| GPSMAP® 1242xsv Plus Bundle |
| GPSMAP® 1243 |
| GPSMAP® 1243xsv |
| GPSMAP® 723 |
| GPSMAP® 723xsv |
| GPSMAP® 743 |
| GPSMAP® 743xsv |
| GPSMAP® 8410 |
| GPSMAP® 8410xsv |
| GPSMAP® 8412 |
| GPSMAP® 8412xsv |
| GPSMAP® 8416 |
| GPSMAP® 8416xsv |
| GPSMAP® 8417 MFD |
| GPSMAP® 8422 MFD |
| GPSMAP® 8424 MFD |
| GPSMAP® 8610 |
| GPSMAP® 8610xsv |
| GPSMAP® 8612 |
| GPSMAP® 8612xsv |
| GPSMAP® 8616 |
| GPSMAP® 8616xsv |
| GPSMAP® 8617 |
| GPSMAP® 8617 MFD |
| GPSMAP® 8622 |
| GPSMAP® 8622 MFD |
| GPSMAP® 8624 |
| GPSMAP® 8624 MFD |
| GPSMAP® 923 |
| GPSMAP® 923xsv |
| GPSMAP® 943 |
| GPSMAP® 943xsv |
