Product Description

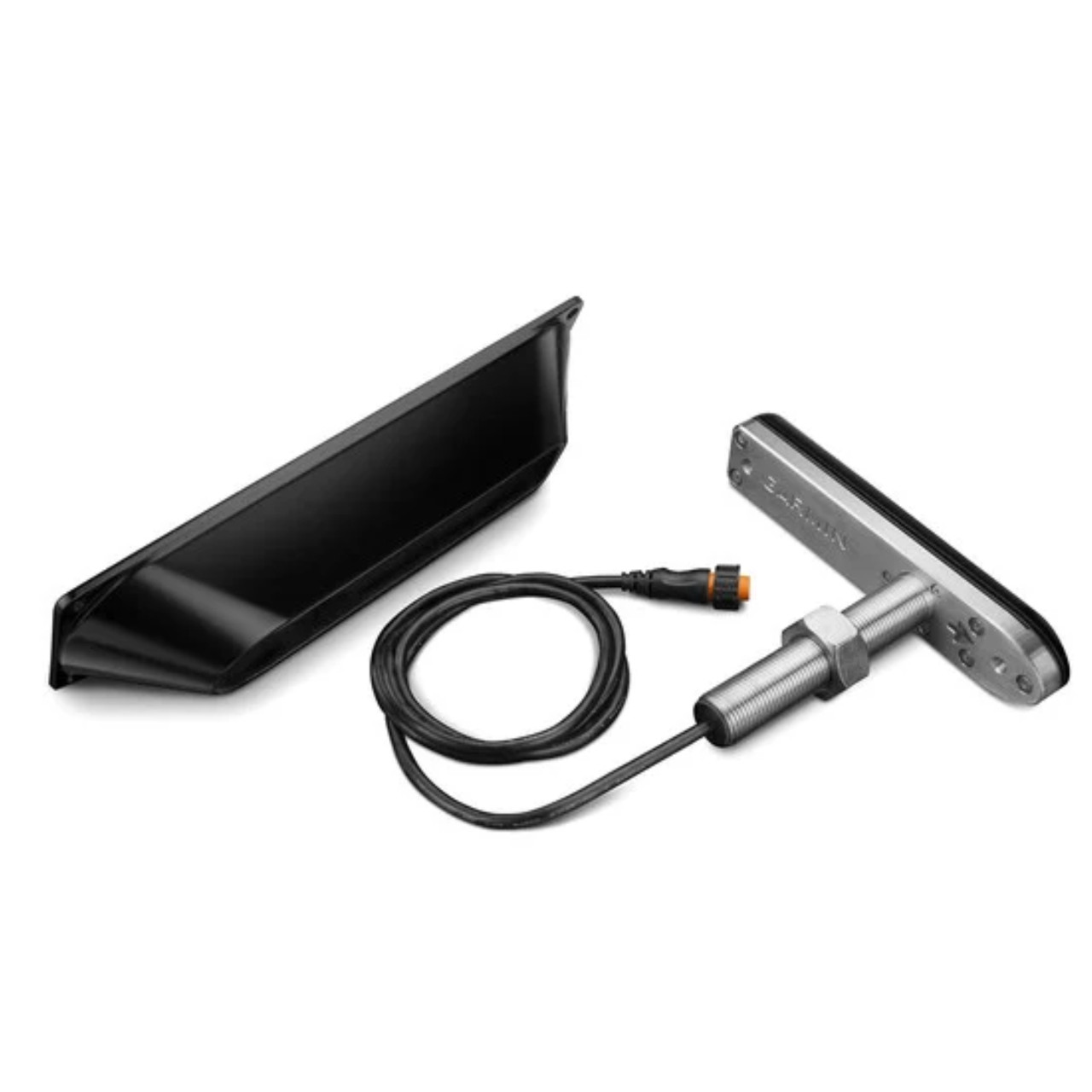

Brand new, genuine Garmin Garmin GT34UHD-TH 12-pin. This is a factory original equipment item, not aftermarket.
SPECS
| General | |
|---|---|
| TRANSDUCER FREQUENCY | Ultra High-Definition ClearVü: 800 kHz (760-880 kHz) |
| Ultra High-Definition SideVü: 1,200 kHz (1,060-1,170 kHz) | |
| TRANSDUCER POWER | 500 W |
| TRANSDUCER BEAMWIDTH | ClearVü: 0.76°x46° @ 800 kHz |
| SideVü: 0.44°x55° @ 1,200 kHz | |
| TRANSDUCER MAXIMUM DEPTH | 200' Ultra High-Definition ClearVü |
| 125' to each side Ultra High-Definition SideVü, 250' total, at a maximum depth of 30' | |
| TRANSDUCER CABLE LENGTH | 20 ft. |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| TRANSDUCER NUMBER OF PINS | 12-pin |
| TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES | Up to 25° deadrise |
Ultra High-Definition Sonar System Thru-hull Pair Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter. Plug directly into your 8600xsv or ECHOMAP Ultra series chartplotter or use the GCV 20 sonar module to display on other compatible chartplotters. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).
Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
Ultra High-Definition SideVü Scanning
See stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
- Sold Each
SKU# 010-12776-10
Fits:
Accessories
| Product |
|---|
| GT Transducer Thru-hull Mounting HardwareGT Transducer Thru-hull Mounting Hardware |
| Split Connector (11 mm)Split Connector (11 mm) |
| Jack Plate MountJack Plate Mount |
| Step MountStep Mount |
| Fairing BlockFairing Block |
| Extension Cable for 12-pin Garmin Scanning Transducers, 10 feetExtension Cable for 12-pin Garmin Scanning Transducers, 10 feet |
| Extension Cable for 12-pin Garmin Scanning Transducers, 30 feetExtension Cable for 12-pin Garmin Scanning Transducers, 30 feet |
| 12-pin Transducer Y-cable, 10 m (32.8 ft)12-pin Transducer Y-cable, 10 m (32.8 ft) |
| Stem Extender for Thru-hull TransducerStem Extender for Thru-hull Transducer |
| Product |
|---|
| Ultra High-Definition Scanning Sonar System |
