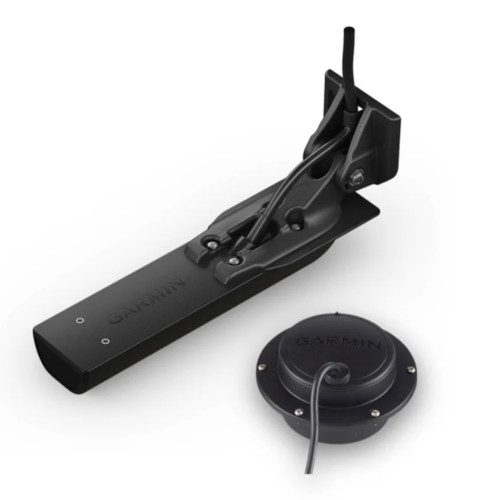

  • Garmin OEM GT36-TM and GT8HW-IH Transducer Bundle, 010-02536-00

    • Garmin OEM GT36-TM and GT8HW-IH Transducer Bundle, 010-02536-00

    Garmin

    S/2,077.42
    SKU:
    010-02536-00
    UPC:
    753759266134
    Condition:
    New
    Availability:
    Special Order Item
    California Prop 65:
    Click here for information
    Availability Description:
    Item will be ordered direct from the manufacturer and generally ships within 5-10 business days. If ordered with any other item(s), fulfillment will not occur until received.
    Return Policy:
    View Return Policy
    Ship Method:
    **Special Order Item: Item(s) eligible for FREE Ground shipping, with order value over $99. Orders under $99 receive Economy shipping with a $5.99 fee. Faster shipping rates are not available.
    Color:
    Black
    Available In Stock Quantity:
    0 Stock On Hand
    Ship Policy:
    View Shipping Policy
    Adding to cart… category.add_cart_announcement

    Product Description

    Brand new, genuine Garmin GT36-TM and GT8HW-IH Transducer Bundle. This is a factory original equipment item, not aftermarket.

    SPECS

    General
    TRANSDUCER FREQUENCYClearVü/SideVü CHIRP 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000kHz(940-1100)
    TRANSDUCER POWERClearVü/SideVü 500 W
    TRANSDUCER BEAMWIDTHClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
    TRANSDUCER MAXIMUM DEPTHClearVü: 400 ft; SideVü: 500 ft
    TRANSDUCER CABLE LENGTH25 ft
    TRANSDUCER DEPTH/SPEED/TEMPERATUREdepth and temperature
    TRANSDUCER NUMBER OF PINS12
    TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES0°-70° degree transom
    • GT36-TM transducer dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm


    Depending on the bundle selected, view these respective specs:
    • GT8HW-IH Transducer
    General
    TRANSDUCER FREQUENCYCHIRP High Wide (145-230 kHz)
    TRANSDUCER POWER250 W
    TRANSDUCER BEAMWIDTH24°-16°
    TRANSDUCER MAXIMUM DEPTH800 ft. freshwater
    TRANSDUCER CABLE LENGTH20 ft.
    TRANSDUCER DEPTH/SPEED/TEMPERATUREDepth
    TRANSDUCER NUMBER OF PINS8-pin
    TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES0°- 6° deadrise

    • Perfect for the coastal and offshore fisherman who wants CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonar, these bundles consistently display clear and crisp fish arches with superior target separation as well as clear definition of objects, structure and fish that pass below and to the side of the boat
    • These bundles include the GT36-TM transom mount transducer which offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars for crystal-clear images of fish and structure, so you can spend more time catching fish
    • Both bundles help you maintain accurate depth readings at high speed, are intended for boats with fiberglass hulls, and include the y-cable required for installing both transducers
    • Choose the bundle with the GT15M-IH in-hull transducer, featuring mid-band CHIRP traditional sonar, if you have a boat with a fiberglass hull and a deadrise from 0° to 25°
    • Choose the bundle with the GT8HW-IH transducer, featuring high-wide CHIRP traditional sonar, if you have a boat with a fiberglass hull and a deadrise of 0° to 6°

    SKU# 010-02536-00

    Items included in this kit:

    • GT36-TM Transducer Bundle (Includes GT8HW-IH Transducer)
    • GT36UHD-TM transducer with 12-pin connector
    • 25 ft transducer cable
    • Transom mount
    • Trolling motor mount
    • Mounting hardware
    • Documentation
    • GT8HW-IH transducer with 8-pin connector
    • 20 ft transducer cable
    • In-hull fitting
    • Documentation
    • Y-cable (12-pin and 8-pin transducer to 12-pin sounder adapter cable)

    Fits:

    Accessories

    Product
    Split Connector (11 mm)Split Connector (11 mm)
    Transom MountTransom Mount
    Transducer Extension Cable, 10 feet (8-pin)Transducer Extension Cable, 10 feet (8-pin)
    Transducer Extension Cable, 30 feet (8-pin)Transducer Extension Cable, 30 feet (8-pin)
    Extension Cable for 12-pin Garmin Scanning Transducers, 10 feetExtension Cable for 12-pin Garmin Scanning Transducers, 10 feet
    Extension Cable for 12-pin Garmin Scanning Transducers, 30 feetExtension Cable for 12-pin Garmin Scanning Transducers, 30 feet
    Y-cable (12pin transducer + 8-pin transducer to 12 pin Sounder)Y-cable (12pin transducer + 8-pin transducer to 12 pin Sounder)
    Transducer Adapter Cable (12-pin)Transducer Adapter Cable (12-pin)
    8-pin Transducer to 12-pin Sounder Adapter Cable with XID8-pin Transducer to 12-pin Sounder Adapter Cable with XID
    Transducer Adapter Cable (P72/P79/GT30) for echoMAP™Transducer Adapter Cable (P72/P79/GT30) for echoMAP™
    12-pin to Dual 4-pin Transducer Y-Cable12-pin to Dual 4-pin Transducer Y-Cable
    Trolling Motor MountTrolling Motor Mount
