    RMSTATOR

    L5,863.87
    SKU:
    RM01270
    Condition:
    New
    Availability:
    In Stock
    Available In Stock Quantity:
    1 Stock On Hand. Please Note: Ordering excess of this amount will cause the order to become Special Order status.
    Availability Description:
    Order before 12pm EST and ships same day, Monday-Friday
    Ship Method:
    Standard Item: Item(s) eligible for FREE shipping, with order value over $99 and other Standard items only.
    Ship Policy:
    View Shipping Policy
    Return Policy:
    View Return Policy
    California Prop 65:
    Click here for information
    Adding to cart… category.add_cart_announcement

    Product Description

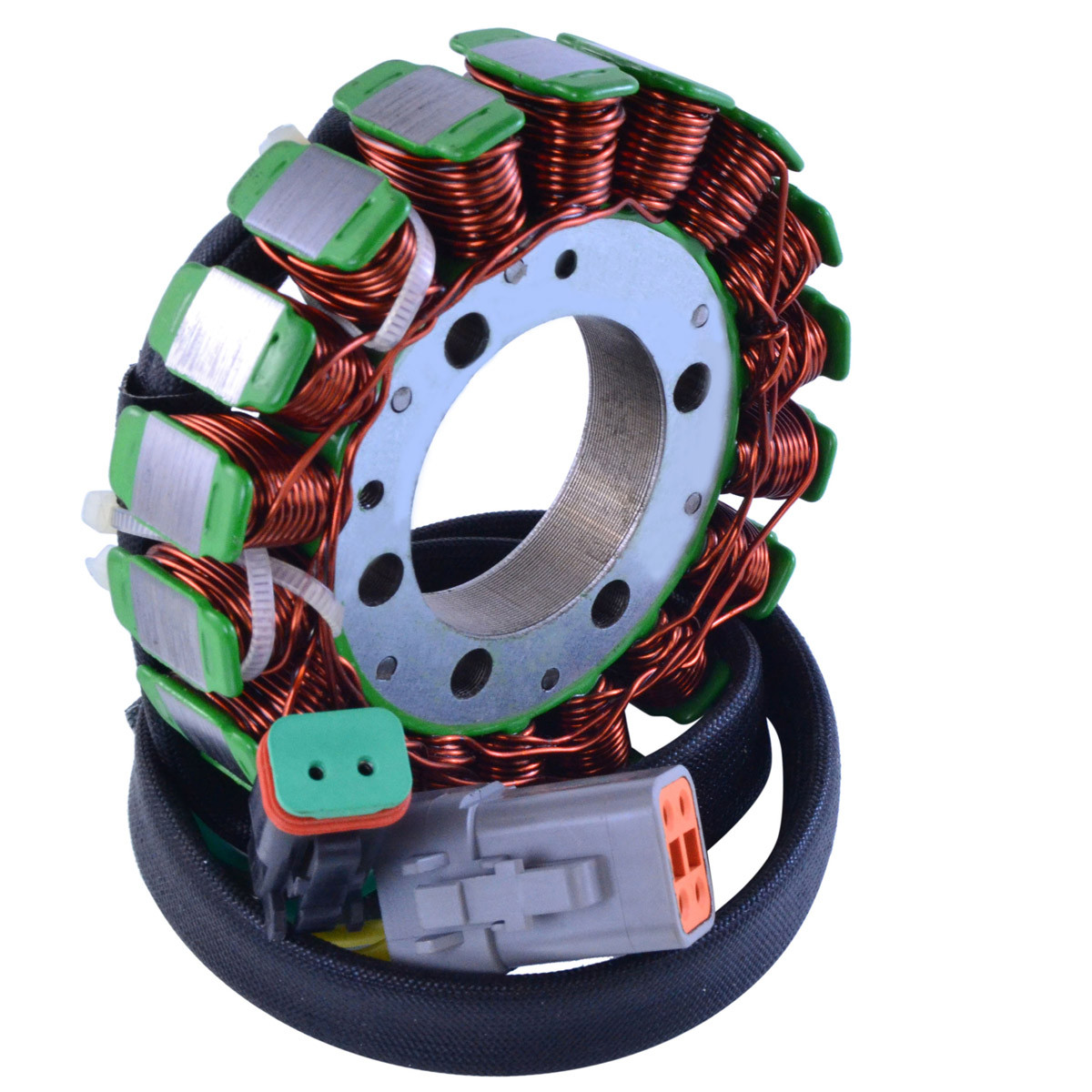

    Brand new, Rmstator Generator Stator.

    Brand new aftermarket stator

    • Direct replacement to your original unit
    • Plug-and-play, direct fit, easy installation
    • Highest grade of lamination materials
    • Highest grade of copper winding, resistant to 200 degrees Celsius

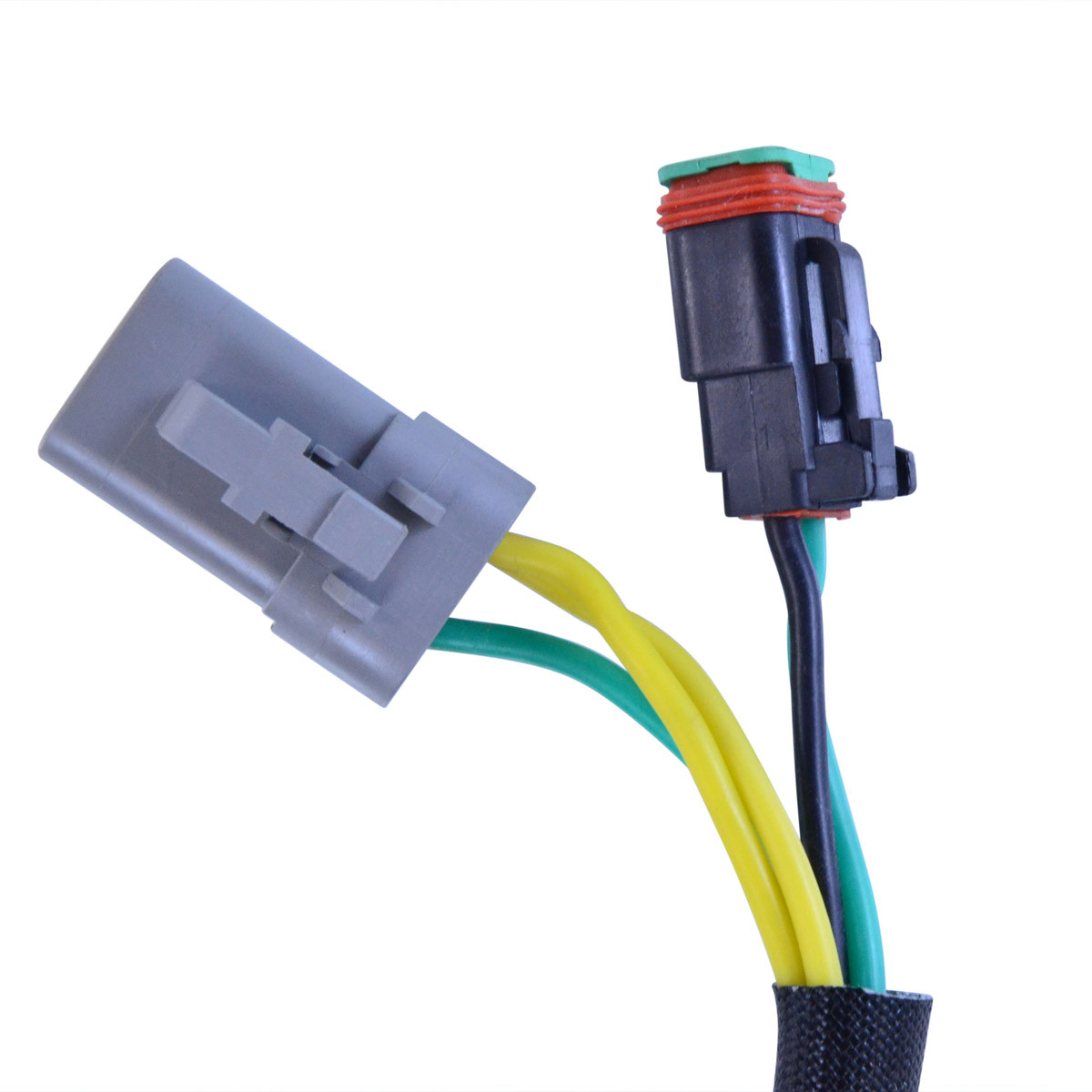

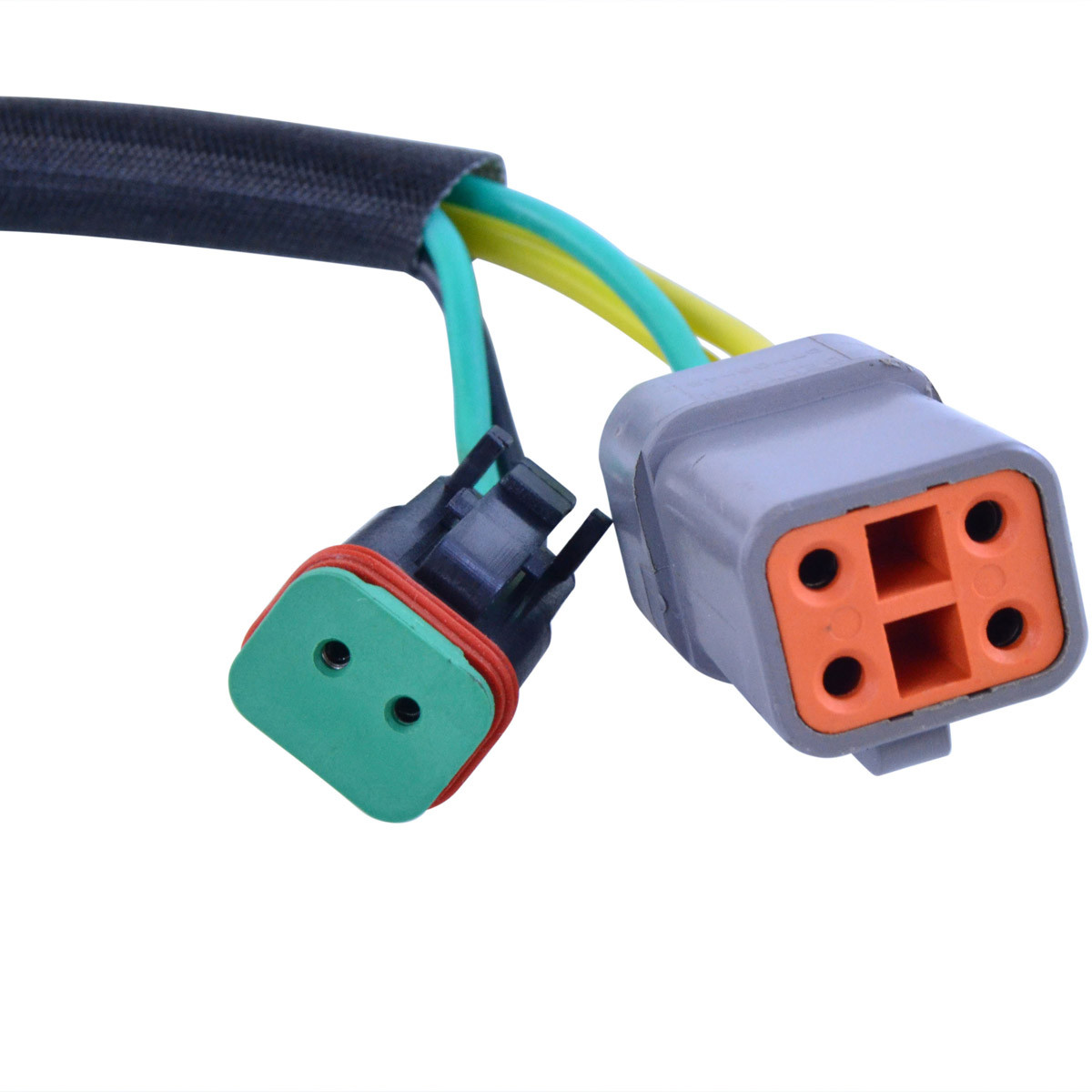

    • Connector included
    • All products shipped are tested

    All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

    Dimensions:
    Interior diameter: 40 mm
    Exterior diameter: 103 mm
    Thickness: 14 mm
    Length of wires stator to connector: 500 mm

    Other specifications:
    Number of wires:5
    Number of plugs: 2
    Number of pins: 5

    Wire to wire resistance:
    Alternator : Yellow to ground = O.L
    Alternator : Between each Yellow = 0.4 ohms+/-20%
    Alternator : Yellow to Green = 0.8 ohms+/-20%

    OEM Replaced SKUs

    420888313, 420889905, 410922993, 410922946, 410922965

    • Sold Each

    SKU# RM01270

    Fits:

    TypeMakeModelSubmodelFromToOEM
    SnowmobileLynxAdventure 60020062006420888313
    SnowmobileLynxEnduro 50020042004420888313
    SnowmobileLynxEnduro 500 RC20042004420888313
    SnowmobileLynxEnduro 600 HO20042004420888313
    SnowmobileLynxEnduro 600 HO RC20042004420888313
    SnowmobileLynxEnduro Sport20052005420888313
    SnowmobileLynxMountain 800 HO20042004420888313
    SnowmobileLynxRave 80020052005420888313
    SnowmobileLynxRave 800 Power Tek20082008420889905
    SnowmobileLynxRave RE 60020082008410922993
    SnowmobileLynxRave X-Trim 800 Power Tek20082008420889905
    SnowmobileLynxSport Touring 60020042004420888313
    SnowmobileLynxYETI 60020082008410922993
    SnowmobileSki-dooGrand Touring 600 Carb L/C20032003410922946
    SnowmobileSki-dooGrand Touring 700 Carb L/C20032003410922946
    SnowmobileSki-dooGrand Touring Sport 500 Carb L/C20032003410922946
    SnowmobileSki-dooGrand Touring Sport 700 Carb L/C20032003410922946
    SnowmobileSki-dooGSX 500 Sport Carb L/C20062006410922946
    SnowmobileSki-dooGSX 500 SS Carb L/C20042004410922965
    SnowmobileSki-dooGSX 500 SS Carb L/C20052005410922946
    SnowmobileSki-dooGSX 500 SS Sport Carb L/C20072007410922993
    SnowmobileSki-dooGSX 600 HO Carb L/C20042004410922965
    SnowmobileSki-dooGSX 600 HO Carb L/C20052005410922946
    SnowmobileSki-dooGSX 800 HO PTEK Carb L/C20042004410922965
    SnowmobileSki-dooGSX 800 HO PTEK Carb L/C20052006410922946
    SnowmobileSki-dooGSX 800 HO PTEK Carb L/C20072007410922993
    SnowmobileSki-dooGTX 500 Sport Carb L/C20062006410922946
    SnowmobileSki-dooGTX 500 SS Carb L/C20052005410922946
    SnowmobileSki-dooGTX 500 SS Sport Carb L/C20072007410922993
    SnowmobileSki-dooGTX 500 SS Sport Carb L/C20082008420889905
    SnowmobileSki-dooGTX 600 HO Carb L/C20052005410922946
    SnowmobileSki-dooGTX 600 HO LTD SDI20052005410922965
    SnowmobileSki-dooGTX 800 HO Carb L/C20052005410922946
    SnowmobileSki-dooGTX 800 HO LTD PTEK Carb L/C20062006410922946
    SnowmobileSki-dooGTX 800 HO LTD PTEK Carb L/C20072007410922993
    SnowmobileSki-dooLegend 500 Sport Carb L/C20032003410922946
    SnowmobileSki-dooLegend 500 SS Carb L/C20042004410922965
    SnowmobileSki-dooLegend 600 Carb L/C20032003410922946
    SnowmobileSki-dooLegend 600 Sport Carb L/C20032003410922946
    SnowmobileSki-dooLegend 700 Carb L/C20032004410922946
    SnowmobileSki-dooLegend 700 sport Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 500 Adrenaline Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 500 Adrenaline RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 500 SS Adrenaline Carb L/C20042004410922965
    SnowmobileSki-dooMX Z 500 SS Adrenaline Carb L/C20052005410922946
    SnowmobileSki-dooMX Z 500 SS Adrenaline Carb L/C20062006420889905
    SnowmobileSki-dooMX Z 500 SS Adrenaline Carb L/C20072007410922993
    SnowmobileSki-dooMX Z 500 SS Renegade Carb L/C20042004410922965
    SnowmobileSki-dooMX Z 500 SS Trail Carb L/C20042006410922946
    SnowmobileSki-dooMX Z 500 SS Trail Carb L/C20072007410922993
    SnowmobileSki-dooMX Z 500 SS Trail R Carb L/C20042004410922965
    SnowmobileSki-dooMX Z 500 Trail Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 500 Trail Carb L/C20062006410922946
    SnowmobileSki-dooMX Z 500 Trail RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 600 Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 600 HO Adrenaline Carb L/C20032006410922946
    SnowmobileSki-dooMX Z 600 HO Adrenaline Carb L/C20072007410922993
    SnowmobileSki-dooMX Z 600 HO Adrenaline RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 600 HO Adrenaline RER Carb L/C20042004410922965
    SnowmobileSki-dooMX Z 600 HO Renegade Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 600 HO Renegade RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 600 HO Renegade RER Carb L/C20042004410922965
    SnowmobileSki-dooMX Z 600 HO Renegade RER Carb L/C20052005410922946
    SnowmobileSki-dooMX Z 600 HO Sport Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 600 HO Sport RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 600 HO Trail Carb L/C20032004410922946
    SnowmobileSki-dooMX Z 600 HO Trail RER Carb L/C20032004410922965
    SnowmobileSki-dooMX Z 600 HO Trail RER Carb L/C20052005410922946
    SnowmobileSki-dooMX Z 600 RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 600 Trail Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 600 Trail RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 700 Adrenaline Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 700 Adrenaline RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 700 Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 700 RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 800 Adrenaline Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 800 Adrenaline Carb L/C20062006410922946
    SnowmobileSki-dooMX Z 800 Adrenaline RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 800 HO Adrenaline PTEK Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 800 HO Adrenaline PTEK Carb L/C20042004410922965
    SnowmobileSki-dooMX Z 800 HO Adrenaline PTEK Carb L/C20052006410922946
    SnowmobileSki-dooMX Z 800 HO Adrenaline PTEK Carb L/C20072007410922993
    SnowmobileSki-dooMX Z 800 HO Blizzard PTEK Carb L/C20072007410922993
    SnowmobileSki-dooMX Z 800 HO Renegade PTEK Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 800 HO Renegade PTEK Carb L/C20042004410922965
    SnowmobileSki-dooMX Z 800 HO Renegade PTEK Carb L/C20052006410922946
    SnowmobileSki-dooMX Z 800 HO Renegade PTEK Carb L/C20072007410922993
    SnowmobileSki-dooMX Z 800 HO Renegade RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 800 HO Renegade X PTEK Carb L/C20052005410922946
    SnowmobileSki-dooMX Z 800 HO Renegade X PTEK Carb L/C20072007410922993
    SnowmobileSki-dooMX Z 800 HO X PTEK Carb L/C20052005410922946
    SnowmobileSki-dooMX Z 800 R Carb L/C20022002410922946
    SnowmobileSki-dooMX Z 800 Renegade Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 800 Renegade Carb L/C20062006410922946
    SnowmobileSki-dooMX Z 800 Renegade RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 800 Sport Carb L/C20032003410922946
    SnowmobileSki-dooMX Z 800 Sport RER Carb L/C20032003410922946
    SnowmobileSki-dooMX Z X-RS 800 HO Carb L/C20072007410922993
    SnowmobileSki-dooMX ZX 440 Racing Carb L/C20072007410922993
    SnowmobileSki-dooMX ZX 600 HO Carb L/C20032005410922946
    SnowmobileSki-dooMX ZX 600 HO Carb L/C20072007410922993
    SnowmobileSki-dooMX ZX 600 HO Renegade EFI L/C20042004410922965
    SnowmobileSki-dooMX ZX 600 HO RER Carb L/C20032004410922965
    SnowmobileSki-dooMX ZX 800 Carb L/C20032003410922946
    SnowmobileSki-dooMX ZX 800 HO Carb L/C20042004410922965
    SnowmobileSki-dooMX ZX 800 HO Carb L/C20052005410922946
    SnowmobileSki-dooMX ZX 800 HO Renegade X Carb L/C20062006410922946
    SnowmobileSki-dooMX ZX 800 HO Renegade X Carb L/C20072007410922993
    SnowmobileSki-dooMX ZX 800 RER Carb L/C20032003410922946
    SnowmobileSki-dooSkandic 600 HO SUV SDI Euro EFI L/C20082008410922993
    SnowmobileSki-dooSkandic 600 SUV Carb L/C20092009410922993
    SnowmobileSki-dooSkandic 600 SUV Carb L/C20092009410922965
    SnowmobileSki-dooSkandic 600 SUV Carb L/C20092009410922946
    SnowmobileSki-dooSkandic 600 WT Carb L/C20082010410922993
    SnowmobileSki-dooSkandic 600 WT Carb L/C20092010420889905
    SnowmobileSki-dooSkandic 600 WT Carb L/C20092010410922965
    SnowmobileSki-dooSkandic 600 WT Carb L/C20092010410922946
    SnowmobileSki-dooSummit 600 HO Adrenaline Carb L/C20032003410922946
    SnowmobileSki-dooSummit 600 HO Adrenaline RER Carb L/C20032003410922946
    SnowmobileSki-dooSummit 600 HO Adrenaline SDI EFI L/C20042004410922965
    SnowmobileSki-dooSummit 600 HO Carb L/C20042004420889905
    SnowmobileSki-dooSummit 600 HO Carb L/C20052005410922946
    SnowmobileSki-dooSummit 700 Adrenaline Carb L/C20032003410922946
    SnowmobileSki-dooSummit 700 Adrenaline RER Carb L/C20032003410922946
    SnowmobileSki-dooSummit 700 Carb L/C20032003410922946
    SnowmobileSki-dooSummit 700 Highmark Carb L/C20032003410922946
    SnowmobileSki-dooSummit 700 Highmark RER Carb L/C20032003410922946
    SnowmobileSki-dooSummit 700 RER Carb L/C20032003410922946
    SnowmobileSki-dooSummit 700 X Carb L/C20032003410922946
    SnowmobileSki-dooSummit 700 X RER Carb L/C20032003410922946
    SnowmobileSki-dooSummit 800 HO Adrenaline Carb L/C20032003410922946
    SnowmobileSki-dooSummit 800 HO Adrenaline Carb L/C20042004410922965
    SnowmobileSki-dooSummit 800 HO Adrenaline Carb L/C20052006410922946
    SnowmobileSki-dooSummit 800 HO Adrenaline RER Carb L/C20032003410922946
    SnowmobileSki-dooSummit 800 HO Carb L/C20042004410922946
    SnowmobileSki-dooSummit 800 HO Highmark Carb L/C20032003410922946
    SnowmobileSki-dooSummit 800 HO Highmark RER Carb L/C20032003410922946
    SnowmobileSki-dooSummit 800 HO Highmark X Carb L/C20032003410922946
    SnowmobileSki-dooSummit 800 HO Highmark X RER Carb L/C20032003410922946
    SnowmobileSki-dooSummit 800 HO RER Carb L/C20042004410922965
    SnowmobileSki-dooSummit 800 HO X Carb L/C20032003410922946
    SnowmobileSki-dooSummit 800 R Adrenaline Carb L/C20072007420889905
    SnowmobileSki-dooSummit 800 R Adrenaline Carb L/C20072007410922965
    SnowmobileSki-dooSummit 800 R Adrenaline Carb L/C20072007410922946
    SnowmobileSki-dooSummit 800 R HO X Carb L/C20062006410922946
    SnowmobileSki-dooSummit 800 R HO X Carb L/C20072007420889905
    SnowmobileSki-dooSummit X 800 R Carb L/C20072007410922965
    SnowmobileSki-dooSummit X 800 R Carb L/C20072007410922946
    SnowmobileSki-dooSummit XRS 800 R Carb L/C20072007420889905
    SnowmobileSki-dooSummit XRS 800 R Carb L/C20072007410922965
    SnowmobileSki-dooSummit XRS 800 R Carb L/C20072007410922946

    Product Videos

    Custom Field

    Available In Stock Quantity 1 Stock On Hand. Please Note: Ordering excess of this amount will cause the order to become Special Order status.
    Availability Description Order before 12pm EST and ships same day, Monday-Friday
    Ship Method Standard Item: Item(s) eligible for FREE shipping, with order value over $99 and other Standard items only.
    Ship Policy View Shipping Policy
    Return Policy View Return Policy
    California Prop 65 Click here for information

    Product Reviews
