Product Description

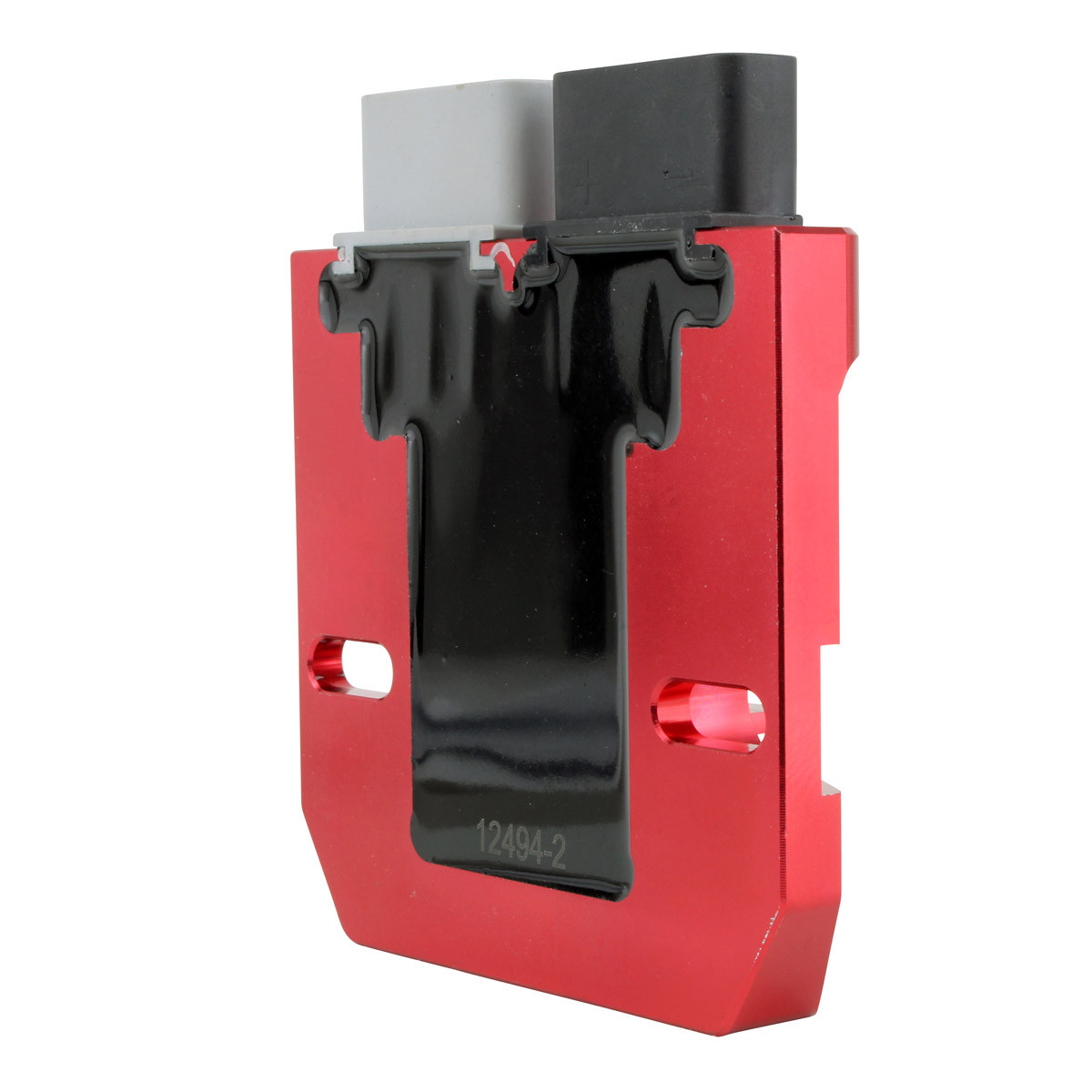

Brand new, Rmstator Series Machined Aluminum Regulator 50amp.
BENEFITS OF SERIES VOLTAGE REGULATORS
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way much cooler than OEM parts.

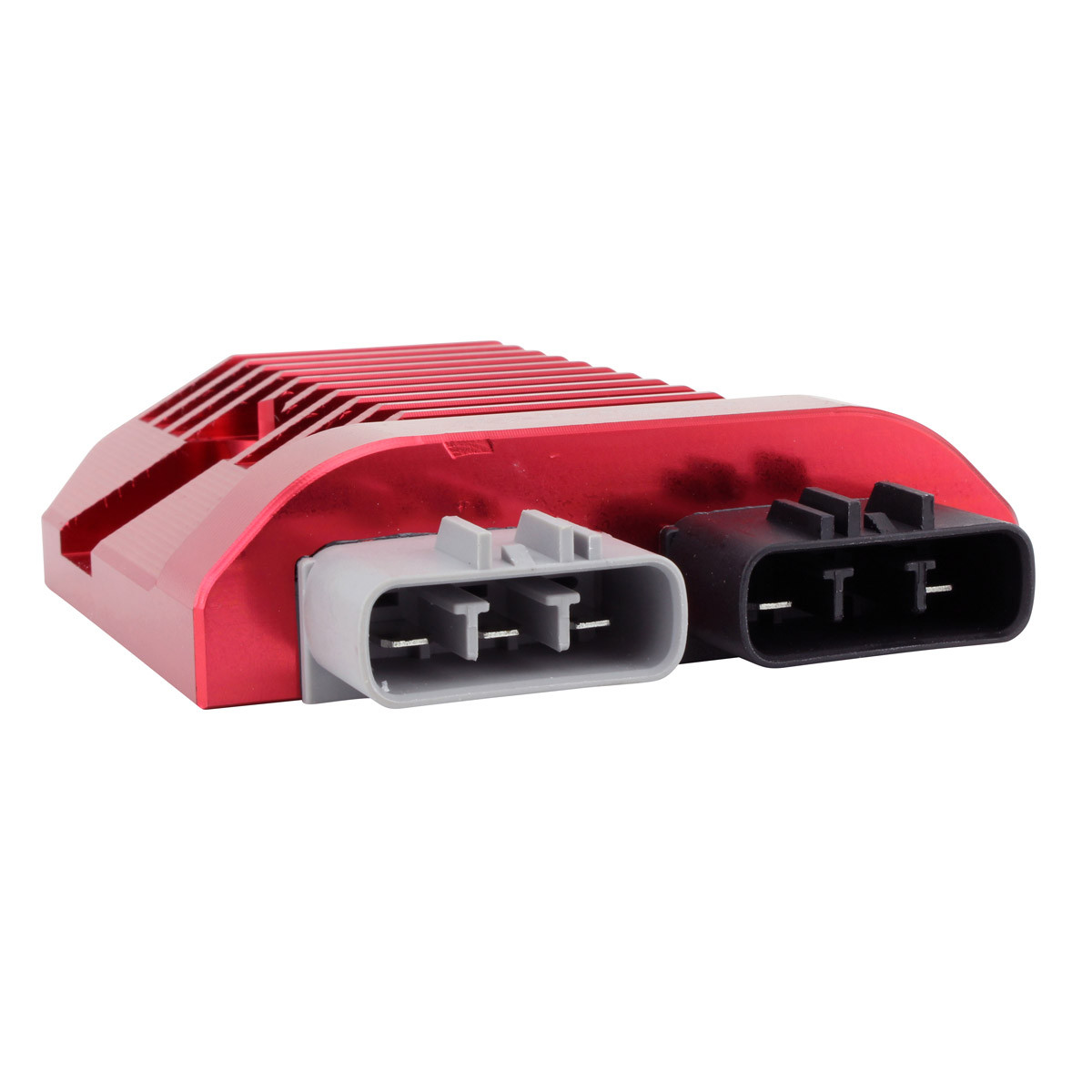

Moreover, the regulator has our new machined billet aluminum casing which dissipate heat 33% better than standard molded casing.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR�s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

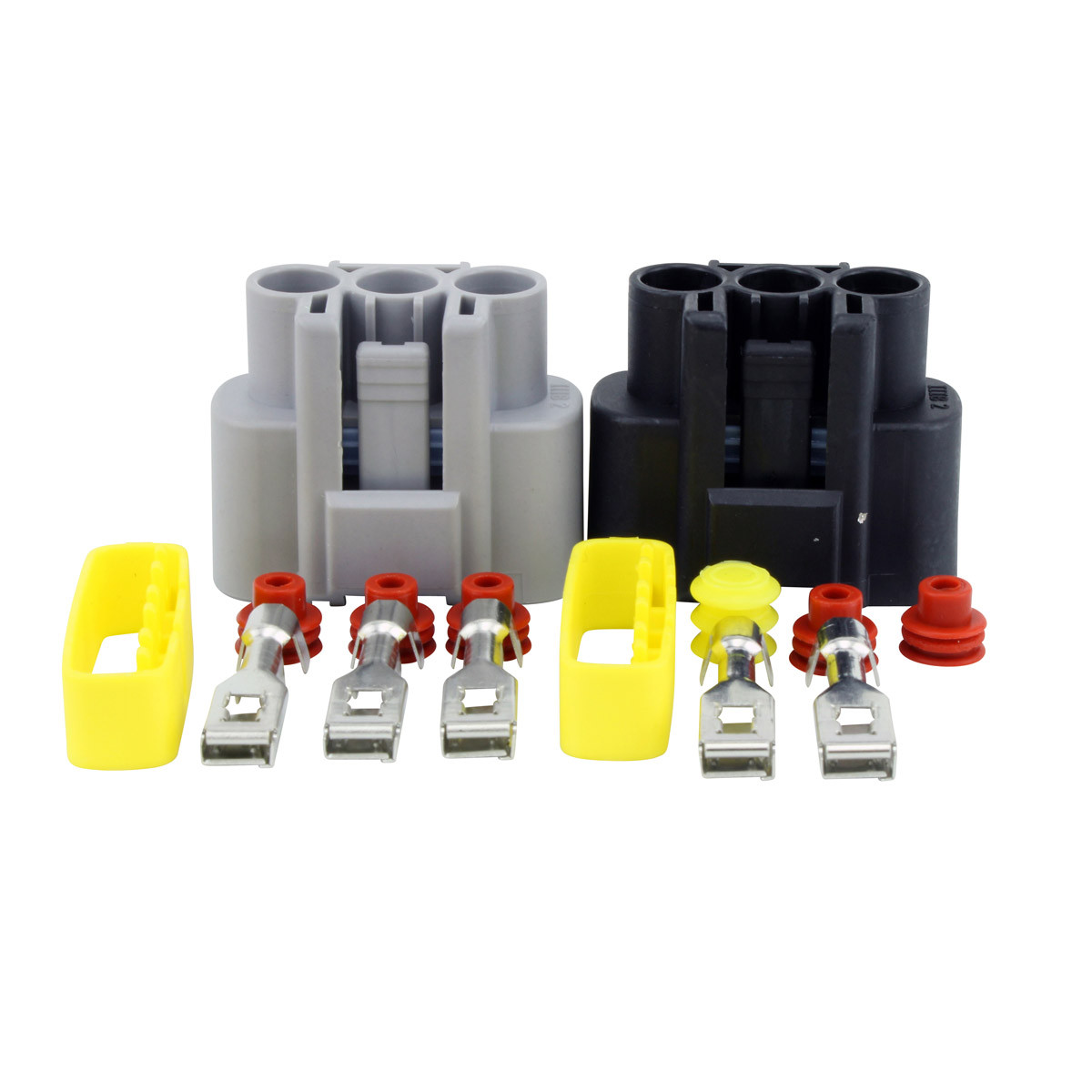

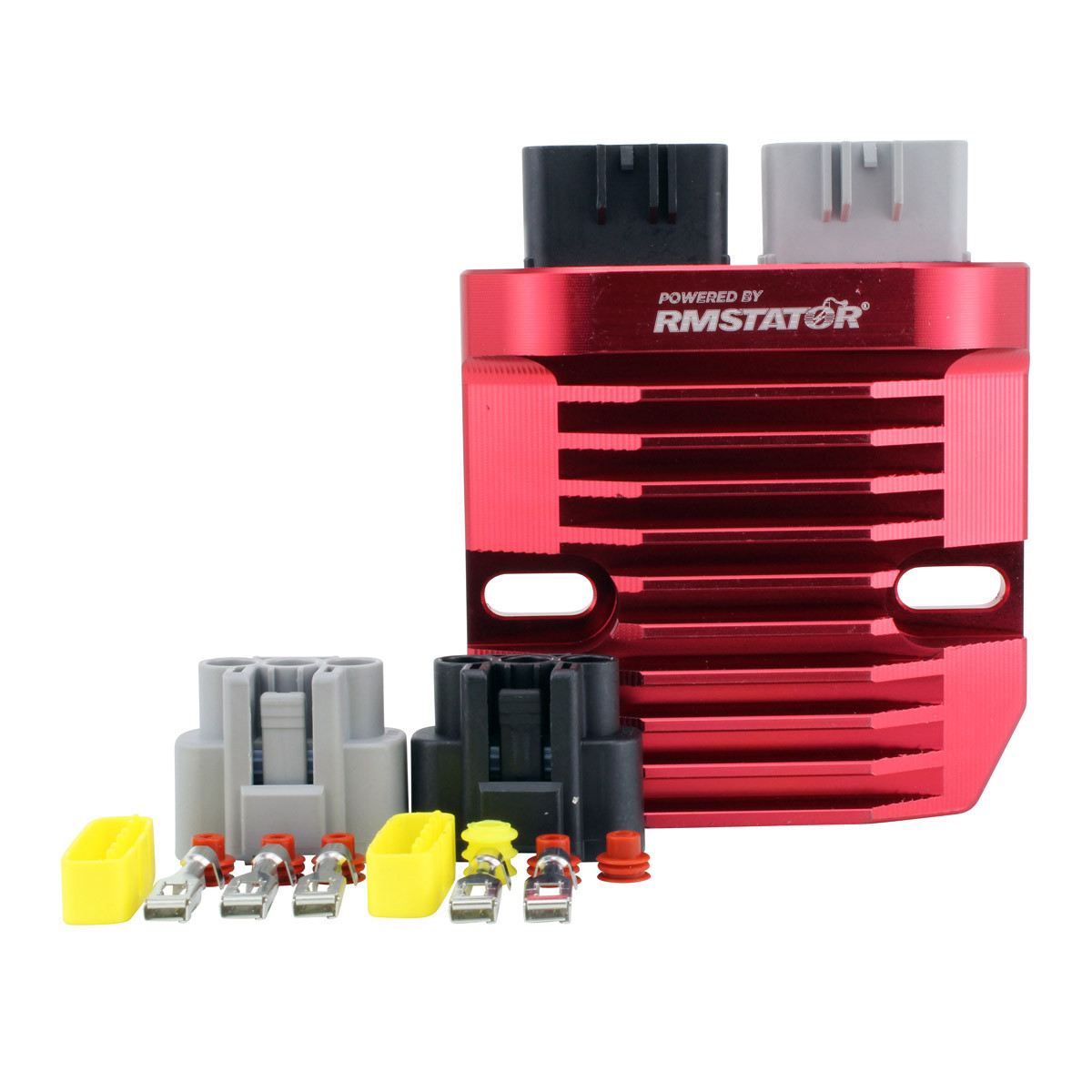

INSTALL LIKE A PROWe include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.
Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20�C to 85�C
OEM Replaced SKUs
, 710000907, 703500717, 4012941- Sold Each
SKU# RMS022-106799
Fits:
Type | Make | Model | Submodel | From | To | OEM |
---|---|---|---|---|---|---|
ALL | ALL | ALL | 0 | 0 | ||
ATV | Can-am | Outlander 400 | 2006 | 2007 | 710000907 | |
ATV | Can-am | Outlander 400 | 2006 | 2007 | 703500717 | |
ATV | Can-am | Outlander Max 400 | 2006 | 2007 | 710000907 | |
ATV | Can-am | Outlander Max 400 | 2006 | 2007 | 703500717 | |
ATV | Polaris | ACE 150 EFI L/C | 2017 | 2021 | 4012941 | |
Motorcycle | Indian | FTR 1200 | 2019 | 2020 | 4012941 | |
Motorcycle | Indian | Scout 1130 | 2015 | 2019 | 4012941 | |
Motorcycle | Indian | Scout 1200 | 2017 | 2021 | 4012941 | |
Motorcycle | Indian | Scout 1300 | 2016 | 2016 | 4012941 | |
Motorcycle | Indian | Scout Bobber 1130 | 2018 | 2018 | 4012941 | |
Motorcycle | Indian | Scout Bobber 1130 | 2020 | 2021 | 4012941 | |
Motorcycle | Indian | Scout sixty 1000 | 2016 | 2021 | 4012941 | |
UTV | Polaris | M1400 | 2015 | 2015 | 4012941 | |
UTV | Polaris | Ranger 1000 Full Size | 2020 | 2021 | 4012941 | |
UTV | Polaris | Ranger 1000 XP | 2019 | 2021 | 4012941 | |
UTV | Polaris | Ranger 150 EFI | 2018 | 2021 | 4012941 | |
UTV | Polaris | Ranger 325 ETX EFI F/C | 2015 | 2015 | 4012941 | |
UTV | Polaris | Ranger 570 EFI F/C | 2014 | 2015 | 4012941 | |
UTV | Polaris | Ranger 800 | 2011 | 2014 | 4012941 | |
UTV | Polaris | Ranger 800 6x6 | 2015 | 2017 | 4012941 | |
UTV | Polaris | Ranger 800 XP | 2012 | 2012 | 4012941 | |
UTV | Polaris | Ranger Crew 1000 XP | 2019 | 2021 | 4012941 | |
UTV | Polaris | Ranger Crew 570 EFI F/C | 2014 | 2018 | 4012941 | |
UTV | Polaris | Ranger Crew 800 | 2011 | 2014 | 4012941 | |
UTV | Polaris | RZR 1000 XP | 2021 | 2021 | 4012941 | |
UTV | Polaris | RZR 4 1000 XP | 2019 | 2019 | 4012941 | |
UTV | Polaris | RZR 4 800 | 2011 | 2014 | 4012941 | |
UTV | Polaris | RZR 4 900 XP Turbo | 2018 | 2020 | 4012941 | |
UTV | Polaris | RZR 4 900 XP Turbo S | 2020 | 2020 | 4012941 | |
UTV | Polaris | RZR 4 900 XP Turbo S Velocity | 2020 | 2020 | 4012941 | |
UTV | Polaris | RZR 570 EFI | 2013 | 2016 | 4012941 | |
UTV | Polaris | RZR 570 EPS | 2013 | 2013 | 4012941 | |
UTV | Polaris | RZR 800 EFI | 2011 | 2014 | 4012941 | |
UTV | Polaris | RZR 800 S | 2011 | 2014 | 4012941 | |
UTV | Polaris | RZR 900 XP Turbo | 2018 | 2020 | 4012941 | |
UTV | Polaris | RZR 900 XP Turbo S | 2021 | 2021 | 4012941 | |
UTV | Polaris | RZR PRO XP | 2020 | 2021 | 4012941 | |
UTV | Polaris | RZR PRO XP 4 | 2020 | 2021 | 4012941 |
