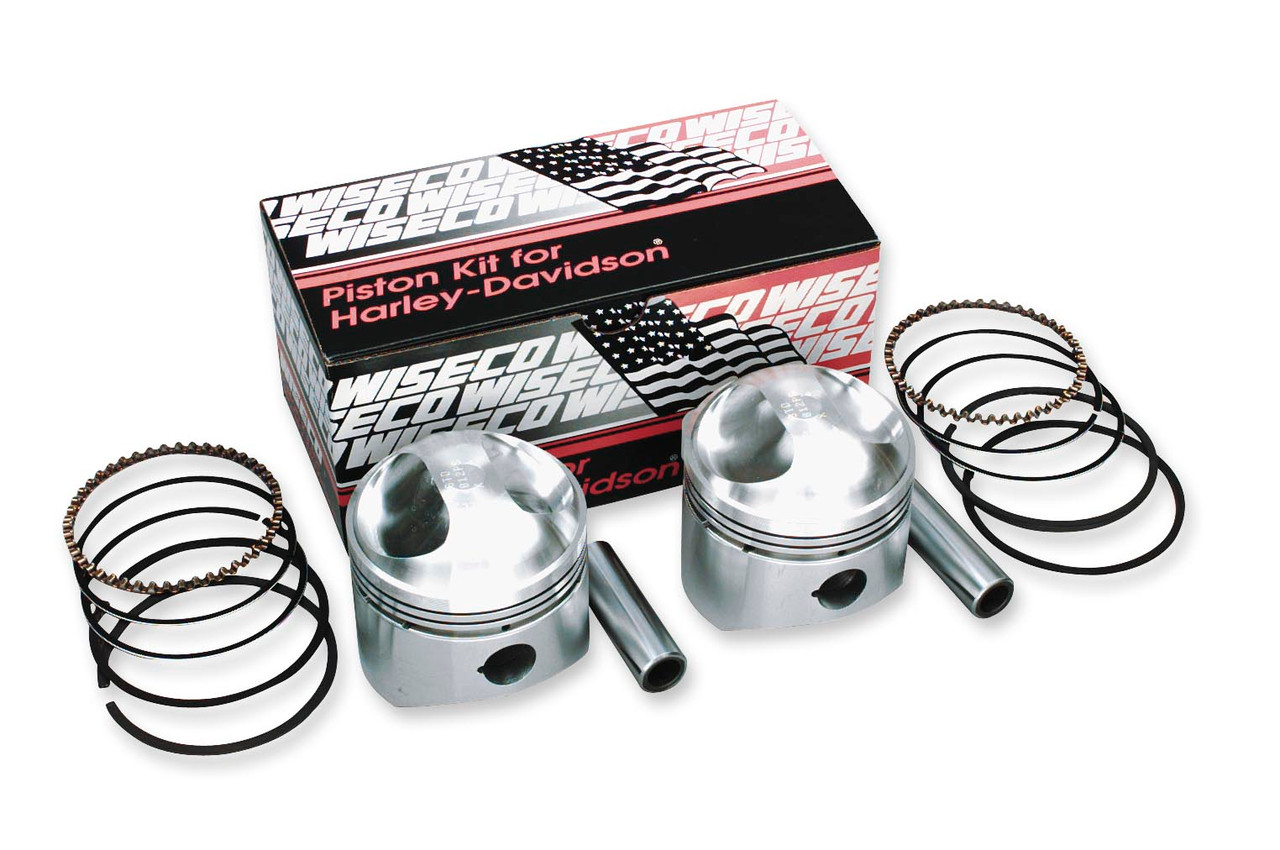

Wiseco Piston Kit - .040 - .883 - Xl, K1659

Brand new, Wiseco Piston Kit - .040 - .883 - Xl.

Kit include: Forged pistons, rings, circlips, chrome piston pins SPECIFICATIONS.Displacement: 1228cc.Bore - Standard: 3.000in.Bore - Actual: 3.538in.Bore - Oversize: .538in.Stroke: 3.812in.Compression Ratio - Actual: 9.5:1.Dome Type: Reverse.Engine Type: 73ci.Dome Volume: -11.2cc.Valve Pocket Depth - Intake: -.215in.Valve Pocket Dia - Intake: 2.100in.Valve Pocket Depth - Exhaust: -.215in.Valve Pocket Dia - Exhaust: 2.100in.Note: Valve pocket dimensions measured from deck height.ITEM CONTENTS.3537X - 89.85 mm Ring Set.4718P4 - HD Evo 883 Overbore 1200 9.5:1 CR 86-11.Ring - Set.S530 - PistonPin 20.1mm x 2.200in. Chromed SW.W5731 - ROUND WIRE PIN LOCKS-HARLEY20MM (PR

• Forged from high-silicon aluminum alloy for maximum strength and dependability
• Contain all the necessary components for overboring or rebuilding your top end
• Feature forged pistons, rings, wrist pins, circlips, and top end gasket
• Cylinder sleeves must be purchased separately

SKU# K1659

Fits:

08 & LATER REQ 1200CC CYL
