Product Description

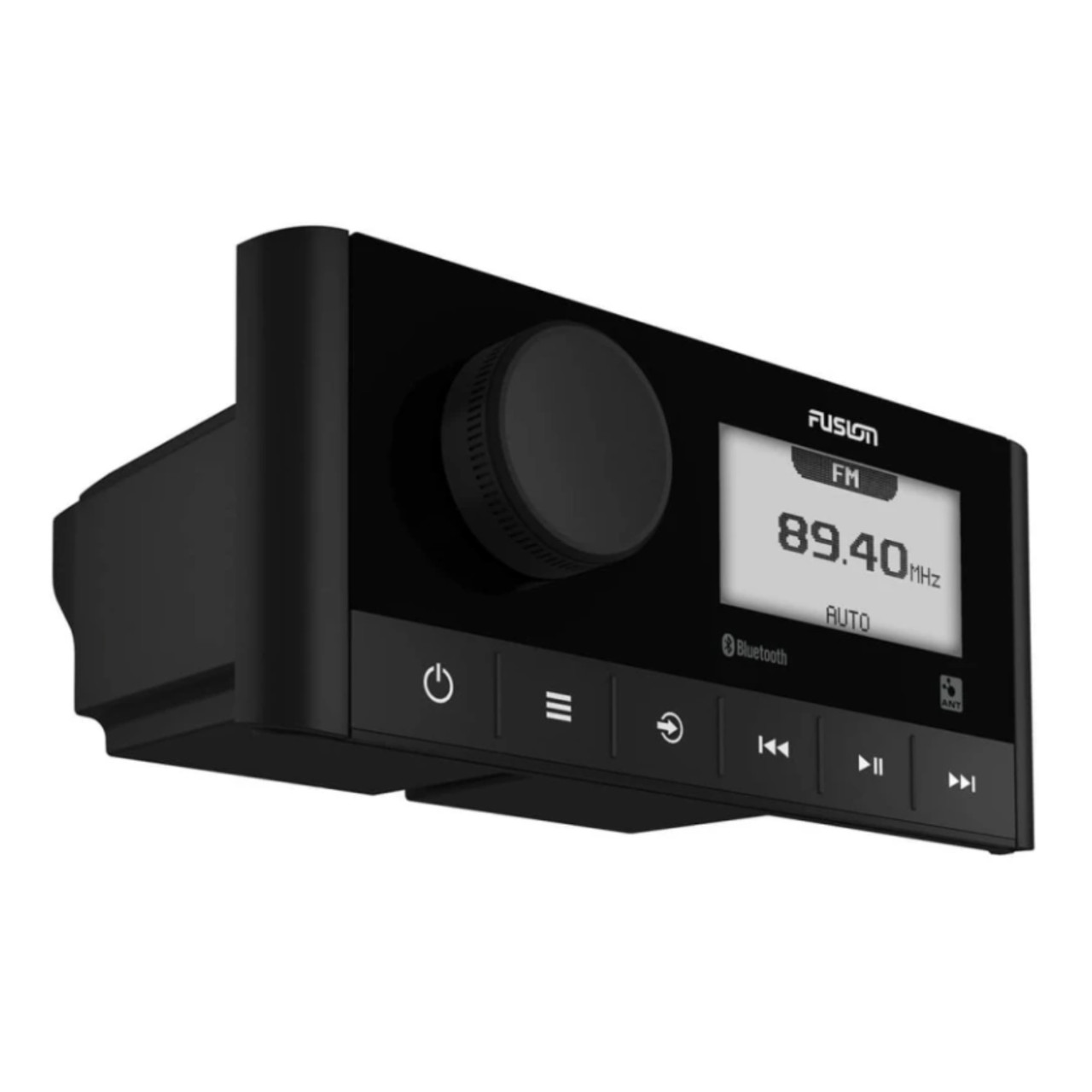

Brand new, genuine Garmin Fusion® MS-RA60 Marine Stereo. This is a factory original equipment item, not aftermarket.
The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.
| General | |
|---|---|
| DIMENSION | 6.18" x 2.68" x 4.06" (156 x 68 x 103.2 mm) |
| DISPLAY | 2.3" perimeter bonded monochrome LCD |
| WEIGHT | 0.7 lbs (316 g) |
| WATER RATING | IPX6 and IPX7 (front panel only, when properly installed) |
| OPERATING TEMPERATURE | 32° to 122° F (0° to 50° C) |
| CURRENT (MAX) | 15 A |
| Networking | |
|---|---|
| BLUETOOTH® WIRELESS RANGE | up to 30 ft (10 meters) |
| ANT® WIRELESS RANGE | Up to 10 ft (3 meters) |
| WIRELESS FREQUENCIES/PROTOCOLS | BLUETOOTH®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
| Audio | |
|---|---|
| AMPLIFIER | Class-D (4 ohm) |
| Electrical Features | |
|---|---|
| POWER INPUT | 10.8 - 16 VDC |
| COMPASS-SAFE DISTANCE | 5.9" (150 mm) |
| Stereo Features | |
|---|---|
| PEAK POWER | 180 watts |
| RATED POWER OUTPUT (4 OHM) | 22 watts RMS x 4 @ 14.4 V input < 10% THD |
| FUSION-LINK™ CONTROL | yes (smart device and Garmin watch) |
| MULTI-ZONE™ TECHNOLOGY | 2 zones |
| BLUETOOTH® WIRELESS TECHNOLOGY | Yes |
| ANT® WIRELESS TECHNOLOGY | Yes |
| DAB+ READY | Yes |
| MULTI-LANGUAGE INTERFACE | Dutch, English, French, German, Italian, Spanish |
| SOFTWARE UPDATES | Over-the-air updates via Fusion-Link™ app |
| WARRANTY | 1year |
| Sources | |
|---|---|
| SUPPORTED SOURCES | AM, FM, BLUETOOTH®, AUX x1 DAB+ (available in Europe and Australia only) |
| Connections | |
|---|---|
| AUXILIARY INPUTS (RCA) | 1 |
| AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) | 1 |
| SPEAKER CONNECTIONS | 4 (2 zone amplified) |
| RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) | 1 zone (requires external amplification) |
| LINE OUT | Zone 1 (L + R, requires external amplification) |
| SUBWOOFER OUT | Zone 1 (mono output, requires external amplification) |
- Bonded LCD improves durability and protection against condensation and fogging.
- Built-in Class-D amplifier delivers higher efficiency and greater output.
- Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app.
- Multi-Zone Technology gives you control of two separate audio zones.
- Control your music from your compatible smart device or Garmin watch.
SKU# 010-02405-00
Items included in this kit:
- Fusion MS-RA60 marine stereo
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- Documentation
Fits:
| Description: |
|---|
| Fusion® AM Series Marine Amplifiers |
| Fusion® EL Series Marine Speakers |
| Fusion® FM Series Marine Speakers |
| Fusion® FM Series Marine Subwoofers |
| Fusion® Signature Series 3 Marine Subwoofers |
| Fusion® Signature Series 3 Marine Wake Tower Speakers |
| Fusion® Signature Series Marine Amplifiers |
| Fusion® SM Series Marine Speakers |
| Fusion® Sound-Panel |
| Fusion® XS Series Marine Speakers |
| Fusion® XS Series Marine Subwoofers |
| quatix® 6 |
| quatix® 6 Titanium |
| quatix® 6X Solar |
